3220-16-0100-00 by cnc tech

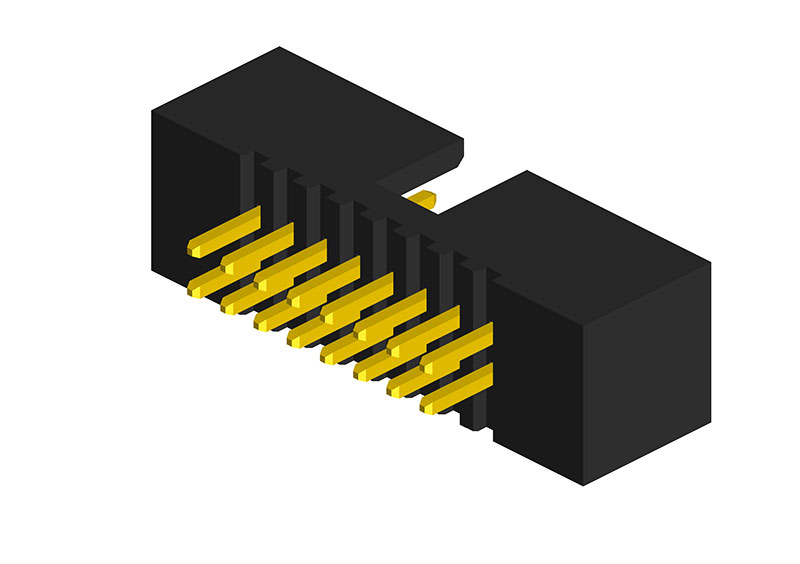

Image is representational - see mfr. specs

3220-16-0100-00

CNC Tech

IDC Box Header - Pitch 0.050" (1.27mm) - 16Pos - Low Profile - Straight - Nylon 9T - Contact Plating Gold Flash ...

Datasheet
RoHS Compliant
CARTON Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The 3220-16-0100-00 is a 1.27mm pitch box header straight type connector manufactured by CNC Tech. It features a 16-pin configuration with a current rating of 1.0A AC/DC and voltage rating of 50V AC/DC, providing reliable electrical connectivity for compact PCB applications. The connector utilizes gold-plated brass terminals and a Nylon 9T (UL94V-0) insulator body in black, ensuring excellent contact resistance of 20mO maximum and insulation resistance of 1,000MO minimum. With a withstanding voltage of 500V AC/minute and operating temperature range of -40°C to +105°C, this connector is suitable for industrial cable and connector applications requiring robust performance in diverse environmental conditions. The standardized 1.27mm pitch and straight mounting configuration make it ideal for high-density PCB layouts and automated assembly processes.

Search Keywords: 322016010000

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
CNC Tech
Part No:
3220-16-0100-00
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536694040
COO:
TW
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
2400
Package Type:
CARTON

IN STOCK: 2,200

Can Ship immediately

Minimum Order Quantity: 50

Factory Lead-Time 20 Weeks

Price (USD)

Qty
Unit Price
50
$0.4513
500
$0.4038
2,400
$0.3835
4,800
$0.3783
7,200
$0.3774
9,600
$0.3736
12,000
$0.3727
16,800 +
$0.3712
Suppliers Standard Package
