3220-20-0300-00 by cnc tech
Image is representational - see mfr. specs

3220-20-0300-00

CNC Tech

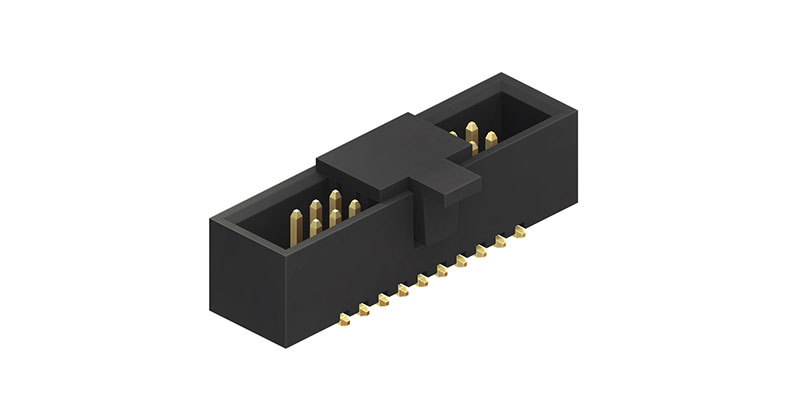

The 3220-20-0300-00 is a 20-pin, 1.27mm pitch, surface-mount (SMD) box header connector. ...

Datasheet
RoHS Compliant
CARTON Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The 3220-20-0300-00 is a 20-pin, surface-mount box header with a 1.27mm pitch, designed for board-to-board or wire-to-board connections. It operates with a current rating of 1.0A and a voltage rating of 50V AC/DC. The connector features gold-plated brass terminals for reliable conductivity and a maximum contact resistance of 20mΩ. Its insulator is made from black Nylon 9T (UL94V-0), ensuring high-temperature performance and flame retardancy. This component is engineered to operate in a wide temperature range from -40°C to +105°C, making it suitable for demanding industrial and commercial electronics applications.

Search Keywords: 322020030000

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
CNC Tech
Part No:
3220-20-0300-00
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536694040
COO:
TW
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
2200
Package Type:
CARTON
  Possible Replacement options available.  See Alternatives

IN STOCK: 249

Ships today, if you order in

On Order: 2,200   can ship 8/27/26

Minimum Order Quantity: 25

Factory Lead-Time 20 Weeks

Price (USD)

Qty
Unit Price
25
$1.137
250
$1.010
500
$0.893
2,200
$0.795
4,400
$0.791
6,600
$0.735
8,800
$0.731
11,000 +
$0.710
Suppliers Standard Package
Log in for special pricing Click for Quote Price Match Request

Tools/3D Models

Product Guides
