1111-10-0519 by concord

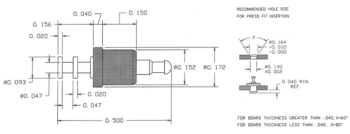

Image is representational - see manufacturer specifications
Concord

1111-10-0519

PTFE INSULATED FEED THRU (DOUBLE TURRET/TIP) TERMINAL ...

View Datasheet Ask the Datasheet
RoHS Non-Compliant
Packaging
Accessories
Certificate of Compliance

DESCRIPTION

1111-10-0519 is a PTFE insulated feed-through terminal with double turret/tip configuration designed for press-fit insertion into circuit boards and panels. The terminal features a brass body (ASTM B16, Alloy C36000, 1/2 hard) with PTFE insulation per ASTM D1710, and is available with multiple finish options including silver, gold, electro-tin, and bright tin-lead plating. The terminal has an overall length of 0.500 inches, a pin diameter of 0.040 inches ± 0.005 inches, and is designed for board/panel thicknesses up to 1/8 inch with a mounting hole size of 0.136 inches ± 0.002 inches. This terminal is ideal for applications requiring reliable electrical connections in commercial insulated terminal assemblies, offering excellent corrosion resistance and electrical conductivity through its precision-machined design and multiple plating options.

Search Keywords: 1111100519

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Concord
Part No:
1111-10-0519
Unit of Measure:
Per Each
RoHS:
No
HTS:
8205595560
ECCN:
EAR99
Supplier's Standard Package: The item count, length, weight, or volume contained in the supplier’s original packaging for efficient storage, handling, and distribution.
1

IN STOCK: 871

Ships today, if you order in

Factory Lead-Time 6 Weeks

Price (USD)

Qty
Unit Price
1
$1.63
10
$1.56
25
$1.49
50
$1.42
100
$1.35
500 +
$1.28
Log in for special pricing
