CD10CD180JO3F by cornell dubilier

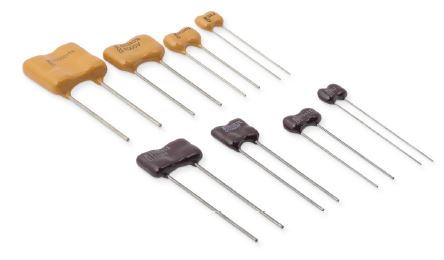

Image is representational - see mfr. specs

CD10CD180JO3F

Cornell Dubilier

Mica Capacitor - Standard Dipped - 18pF (+/-) 5% - 500VDC - -55°C to 125°C - TC= -200 to 200ppm/°C - RoHS ...

Datasheet
RoHS Compliant
BAG Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

CD10CD180JO3F is a standard dipped silvered mica capacitor designed for timing and close tolerance applications requiring stable capacitance over a wide temperature range. This capacitor features an 18 pF capacitance value with a 1000 Vdc rated voltage, meeting EIA RS153B dimensional specifications. The device exhibits excellent stability characteristics with a minimum dV/dt pulse capability of 100,000 V/µs and operates reliably across the temperature range of -55°C to +150°C. The CD10 package type provides compact dimensions suitable for high-frequency circuits, instrumentation, and precision timing applications where mica's inherent stability and low distortion are essential.

Search Keywords: CD10CD180JO3F

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Cornell Dubilier
Part No:
CD10CD180JO3F
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8532290020
COO:
MX
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
100
Package Type:
BAG
Capacitance Value:
18 pF
Dimension:
9.1(Max) x 4.8(Max) x 8.4(Max) mm
Lead Diameter:
0.4 mm
Lead Pitch For Radial:
3.6 mm
Construction:
N/A
Family:
CD10

IN STOCK: 200

Can Ship immediately

Minimum Order Quantity: 10

Factory Lead-Time 12 Weeks

Price (USD)

Qty
Unit Price
10
$4.06
50
$3.72
100
$3.57
300
$3.34
500
$3.06
1,000
$2.52
2,500
$1.97
5,000 +
$1.86
Suppliers Standard Package
