CD15ED300JO3F by cornell dubilier

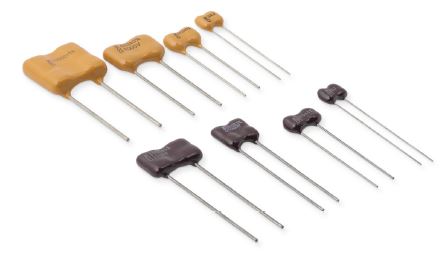

Image is representational - see mfr. specs

CD15ED300JO3F

Cornell Dubilier

Mica Capacitor - Standard Dipped - 30pF (+/-) 5% - 500VDC - -55°C to 125°C - TC= -20 to 100ppm/°C - RoHS ...

Datasheet
RoHS Compliant
BAG Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

CD15ED300JO3F is a standard dipped silvered mica capacitor designed for timing and close tolerance applications requiring stable capacitance over a wide temperature range. This CD15 series capacitor features a capacitance of 30 pF with ±5% tolerance (J) and a rated voltage of 500 Vdc. The capacitor has dimensions of approximately 0.45 in (11.4 mm) length, 0.36 in (9.1 mm) height, and 0.17 in (4.3 mm) thickness, with a lead spacing of 0.234 in (5.9 mm) and lead diameter of 0.025 in (0.6 mm). It operates over a temperature range of -55°C to +125°C and offers 100,000 V/µs dV/dt pulse capability minimum. These mica capacitors are ideal for applications demanding high stability and precision.

Search Keywords: CD15ED300JO3F

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Cornell Dubilier
Part No:
CD15ED300JO3F
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8532290020
COO:
MX
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
100
Package Type:
BAG
Lead Pitch For Radial:
5.9 mm
Capacitance Value:
30 pF
Dimension:
11.4(Max) x 4.3(Max) x 9.1(Max) mm
Construction:
N/A
Lead Diameter:
0.6 mm
Family:
CD15

IN STOCK: 4,978

Ships today, if you order in

Manufacturer Stock: 600   can ship 5/25/26

Minimum Order Quantity: 100

Multiple: 100

Factory Lead-Time 12 Weeks can ship 8/5/26

Price (USD)

Qty
Unit Price
100
$1.83
300
$1.75
500
$1.67
1,000
$1.38
2,500
$1.13
5,000
$1.10
7,500
$1.07
10,000 +
$1.06
Suppliers Standard Package
