CD15ED470JO3F by cornell dubilier

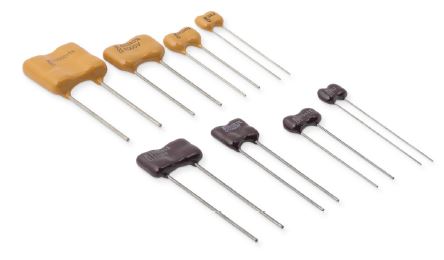

Image is representational - see manufacturer specifications
Cornell Dubilier Authorized Distributor

CD15ED470JO3F

Mica Capacitor - Standard Dipped - 47pF (+/-) 5% - 500VDC - -55°C to 125°C - TC= -20 to 100ppm/°C - RoHS ...

View Datasheet Ask the Datasheet
RoHS Compliant
BAG Packaging
Accessories
Certificate of Compliance

DESCRIPTION

CD15ED470JO3F is a standard dipped silvered mica capacitor designed for timing circuits and close tolerance applications requiring stable capacitance over a wide temperature range. This 47 pF capacitor is rated at 500 Vdc and features a capacitance tolerance of ±5% (J-grade), meeting EIA RS153B dimensional specifications. The device operates from -55 °C to +125 °C and demonstrates excellent stability and reliability with a minimum dV/dt pulse capability of 100,000 V/µs. Its compact form factor (0.45 in × 0.36 in × 0.17 in) and dipped construction make it suitable for high-reliability timing circuits, RF applications, and precision measurement equipment where stable capacitance and low loss are critical.

Search Keywords: CD15ED470JO3F

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Cornell Dubilier
Part No:
CD15ED470JO3F
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8532290020
COO:
MX
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
100
Package Type:
BAG
Lead Pitch For Radial:
5.9 mm
Capacitance Value:
47 pF
Lead Diameter:
0.6 mm
Dimension:
11.4(Max) x 4.3(Max) x 9.1(Max) mm
Construction:
N/A
Family:
CD15

IN STOCK: 600

Can Ship immediately

Minimum Order Quantity: 100

Multiple: 100

Factory Lead-Time 12 Weeks

Price (USD)

Qty
Unit Price
100
$1.50
300
$1.48
500
$1.29
1,000
$1.21
2,500
$1.17
5,000
$1.14
7,500
$1.13
10,000 +
$1.12
Supplier's Standard Package
