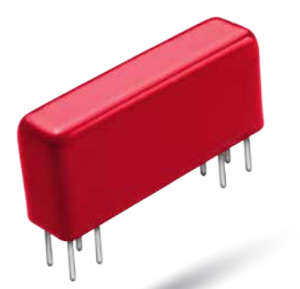

Image is representational - see manufacturer specifications
Coto Technology Authorized Distributor

9012-05-11

The 9012-05-11 is a 10W miniature SIP relay featuring hermetically sealed contacts and an internal magnetic shield for high-density applications. ...

View Datasheet Ask the Datasheet
RoHS Compliant
TUBE Packaging
Accessories
Certificate of Compliance

DESCRIPTION

The 9012-05-11 is a 10W miniature Single In-line Package (SIP) relay designed for applications requiring high board density. This model operates on a nominal coil voltage of 5.0 VDC with a coil resistance of 500 Ω. It is rated for a maximum switching voltage of 200V, a switching current of 0.5A, and can handle a carry current of 1.0A. Key features include high-speed switching with a typical operate time of 0.35 ms, an internal magnetic shield to reduce interaction, and a high insulation resistance of 10^12 Ω. Its compact size, long life, and high reliability make it ideal for automated test equipment (ATE), instrumentation, and telecommunications.

Search Keywords: 90120511

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Coto Technology
Part No:
9012-05-11
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536410060
COO:
MX
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
39
Package Type:
TUBE
Type:
Dry
DC Coil Voltage:
5 V
Contact Arrangement:
SPST-NO
Maximum AC Switching Voltage:
200 V
Maximum DC Switching Voltage:
200 V
Maximum Carry Current:
1.5 A
Maximum Switching Current:
0.5 A
Maximum Switching Power:
10 W
Package Type:
SIP
Terminal Type:
PC Pin
Mounting:
Through Hole

IN STOCK: 0

On Order: 5,031   can ship 9/7/26
On Order: 4,883   can ship 9/14/26

Minimum Order Quantity: 39

Multiple: 39

Factory Lead-Time 15 Weeks

Price (USD)

Qty
Unit Price
39
$7.61
78
$7.29
117
$7.15
273
$6.82
507
$6.60
1,014
$6.38
2,535
$6.37
5,031 +
$6.34
Supplier's Standard Package
