ALTERNATIVE PRODUCTS
Older Equivalent
PBO-5-S12
PBO-5-S12

In Stock: 11

Minimum Order: 5

VIEW PRODUCT

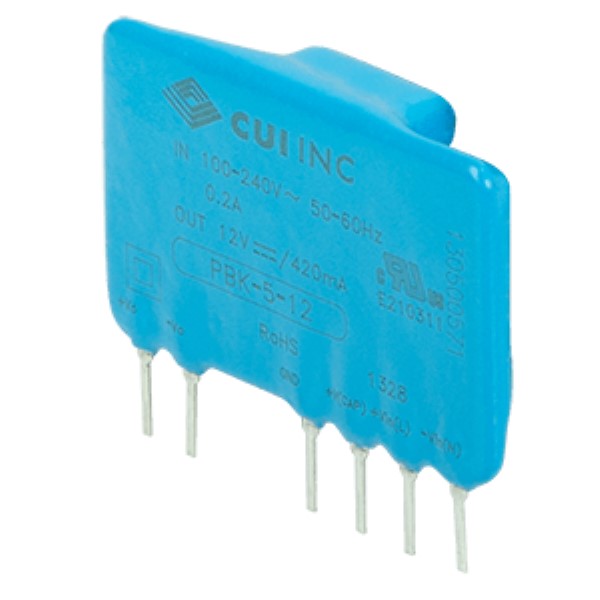

PBK-5-12 by cui inc.
Image is representational - see mfr. specs

PBK-5-12

CUI Inc.

AC/DC Power Supply - 1 Output - Encapsulated - PCB Mount - 12V@0.42A - 5W ...

Datasheet
RoHS Compliant
Tray Packaging
Accessories
Discontinued
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The PBK-5-12 is an AC-DC power supply module designed to deliver regulated 12 Vdc output with up to 5 W continuous power in an ultra-compact SIP package. It features universal input voltage capability (85–264 Vac or 100–400 Vdc), 3,000 Vac isolation between input and output, and integrated protections including over-current, short-circuit, and over-voltage functions. The module achieves 74% typical efficiency and includes comprehensive safety certifications (UL 60950-1, Class II) with EMC compliance to CISPR22/EN55022 standards. With a maximum output current of 0.42 A, ripple and noise of 120 mVp-p, and operating temperature range of -25°C to +85°C, the PBK-5-12 is well-suited for industrial control systems, telecommunications equipment, and embedded applications requiring compact, isolated DC power.

Search Keywords: PBK512

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
CUI Inc.
Part No:
PBK-5-12
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8504409510
COO:
CN
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Package Type:
Tray
Grade:
Commercial
Dimensions LxWxH:
1.654 x 0.433 x 1.06 in
Life Cycle:
Discontinued
  This product is discontinued, but still in stock

IN STOCK: 195

Ships today, if you order in

Minimum Order Quantity: 25

Price (USD)

Qty
Unit Price
25
$5.25
65
$5.15
108 +
$4.86
Log in for special pricing Click for Quote Price Match Request
