DAT71215F by cynergy3

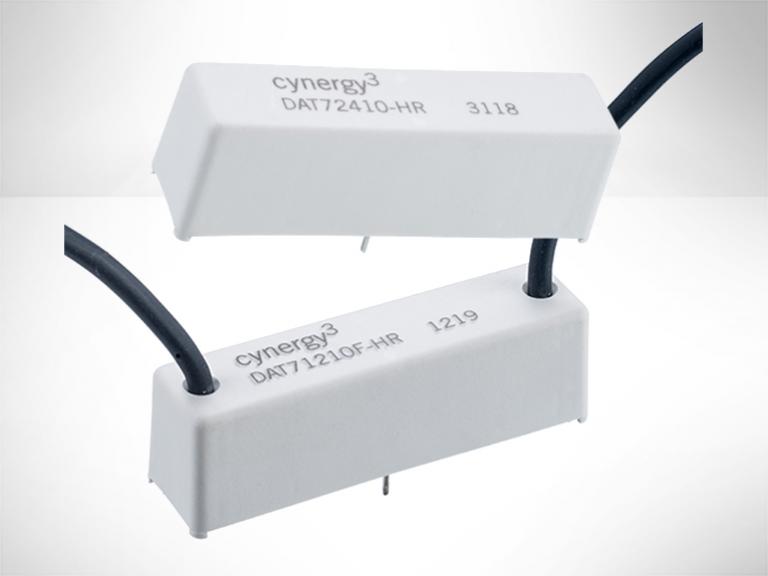

Image is representational - see mfr. specs

DAT71215F

Cynergy3

The DAT71215F is a high-insulation resistance, single-pole normally-open (SPNO) reed relay featuring 15kV isolation, Tungsten contacts, and a 12Vdc coil. ...

Datasheet
RoHS Compliant
Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The DAT71215F is a high-voltage reed relay from the D-HR series, designed for applications requiring very high insulation. It provides 15kV isolation across its normally-open Tungsten contacts and is operated by a 12Vdc coil with a nominal resistance of 95 Ω. This relay can switch up to 10000V or 2A, with a maximum switching power of 50W, and features a very high insulation resistance of 1x10^14 Ω minimum. The device is configured for PCB mounting with flying leads for the high-voltage connections and operates over a temperature range of -20°C to +70°C. Its robust characteristics make it ideal for sensitive high-reliability equipment like cardiac defibrillators, test equipment, and high-voltage power supplies.

Search Keywords: DAT71215F

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Cynergy3
Part No:
DAT71215F
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8535300080
COO:
MY
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
20
Relay Construction:
Non-Latching
AC Coil Voltage:
N/A
DC Coil Voltage:
12 V
Contact Arrangement:
SPST-NO
Mounting:
N/A
Operating Temperature:
-20 to 70 °C

IN STOCK: 0

On Order: 20   can ship 8/10/26

Factory Lead-Time 21 Weeks

Price (USD)

Qty
Unit Price
1
$93.63
5
$86.64
10
$84.13
20
$79.53
60
$77.40
100 +
$76.24
Suppliers Standard Package
Log in for special pricing Click for Quote Price Match Request
