BFB0724H-T500 by delta thermal / emi / solenoids
Delta Thermal / EMI / Solenoids Authorized Distributor

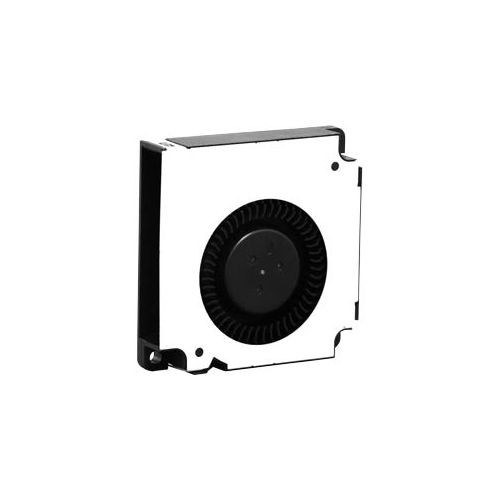

BFB0724H-T500

Blower Square-75.7mm L x 75.7mm H x 30mm W 24VDC 2 Wire Leads IP55 ...

View Datasheet
RoHS Compliant
Packaging
Accessories
Discontinued
Certificate of Compliance

DESCRIPTION

The BFB0724H-T500 is a DC brushless blower motor featuring a two-phase, four-pole design optimized for compact cooling applications. It operates at a rated voltage of 24 VDC with an operating range of 14.0 to 27.6 VDC, delivering a maximum air flow of 0.32 m³/min (11.30 CFM) at zero static pressure and a maximum air pressure of 12.2 mmHg (0.480 inchH2O) at zero airflow. The motor runs at 2900 RPM with an input current of 0.12 A (maximum 0.20 A) and input power of 2.88 W (maximum 4.80 W), while maintaining an average acoustic noise level of 38.0 dB-A (maximum 45.0 dB-A). The blower features a plastic frame and impeller (UL 94V-0 rated), two ball bearing system, and is designed for continuous operation up to 50,000 hours at 40°C with 15–65% relative humidity. This product is ideal for thermal management in industrial equipment, telecommunications systems, and consumer electronics requiring reliable, quiet cooling performance.

Search Keywords: BFB0724HT500

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Delta Thermal / EMI / Solenoids
Part No:
BFB0724H-T500
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8414596560
COO:
TH
ECCN:
EAR99
Supplier's Standard Package: The item count, length, weight, or volume contained in the supplier’s original packaging for efficient storage, handling, and distribution.
1
Category:
DC Blower1342
Dimension:
75.7 x 75.7 x 301359mm
Voltage Rating:
24 V
Power Rating:
2.88 W
Maximum Airflow:
11.3 CFM
Noise Level:
38 dB
Termination:
Lead Wire1364
Housing Material:
Plastic1345
Operating Temperature:
-10 to 70 °C
Life Cycle:
Discontinued
  This product is discontinued, but still in stock

IN STOCK: 166

Ships today, if you order in

Manufacturer Stock: 86   can ship 11/13/26

Minimum Order Quantity: 2

Price (USD)

Qty
Unit Price
2
$23.289
25
$19.869
84
$17.644
100
$17.114
168
$16.602
500
$16.103
1,000
$15.620
1,500 +
$15.151
Log in for special pricing
