515-1194-00300F by dialight
Image is representational - see mfr. specs

515-1194-00300F

Dialight

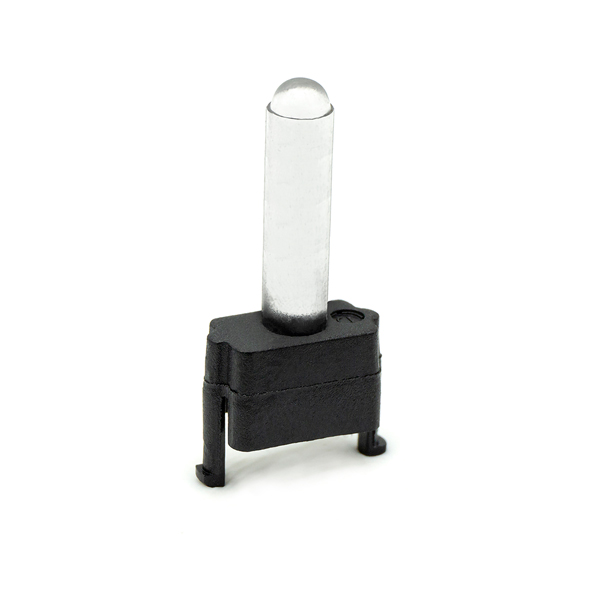

The 515-1194-00300F is a vertical board-mount OPTOPIPE® light pipe with a 3mm diameter output and a clear, domed lens. ...

Datasheet
RoHS Non-Compliant
BAG Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The 515-1194-00300F is a vertical board-mount OPTOPIPE® light pipe designed to transfer light from a PCB-mounted LED to a front panel. This model features a clear, domed lens, a length of 0.300 inches (7.62 mm), and is molded from UL94-V0 rated water-clear polycarbonate. It is designed for use with PLCC-2 and PLCC-4 surface mount LEDs and provides easy, positive snap-in mounting to the PCB. This light pipe is an excellent solution for status indication in industrial applications and building automation where the PCB is parallel to the display panel.

Search Keywords: 515119400300F

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Dialight
Part No:
515-1194-00300F
Unit of Measure:
Per Each
RoHS:
No
HTS:
3926900000
COO:
MY
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
50
Package Type:
BAG
Color:
Clear
Dimension:
N/A

IN STOCK: 1,550

Can Ship immediately

Minimum Order Quantity: 50

Multiple: 50

Factory Lead-Time 2 Weeks

Price (USD)

Qty
Unit Price
50
$0.3963
500
$0.3545
1,000
$0.3465
2,500
$0.3391
5,000
$0.3323
7,500
$0.3315
10,000
$0.3281
15,000 +
$0.3272
Suppliers Standard Package
