556-1904-304F by dialight
Image is representational - see manufacturer specifications
Dialight Authorized Distributor

556-1904-304F

The 556-1904-304F is an orange, 24 VDC panel mount indicator with a flat lens and a white nickel plated housing. ...

View Datasheet Ask the Datasheet
RoHS Non-Compliant
BAG Packaging
Accessories
Certificate of Compliance

DESCRIPTION

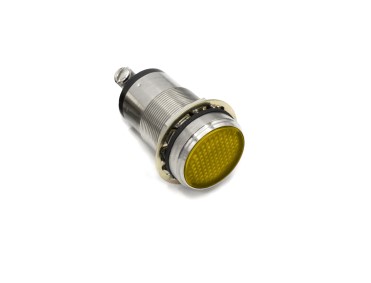

The 556-1904-304F is a standard panel mount indicator from the 556 Series, designed for clear signaling. It emits an orange light with a typical luminous intensity of 11,500 mcd while operating at 24 VDC and drawing a typical current of 46 mA. This indicator features a durable white nickel plated brass housing, a flat transparent polycarbonate lens, and connects via 6-32 screw terminals. Rated to IP66, NEMA 4X, and IK07 standards, it is built to withstand harsh environments with an operating temperature range of -30°C to +85°C. Common applications include instrument panels, safety systems, transportation, and various outdoor displays.

Search Keywords: 5561904304F

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Dialight
Part No:
556-1904-304F
Unit of Measure:
Per Each
RoHS:
No
HTS:
8541402000
COO:
MX
ECCN:
EAR99
Supplier's Standard Package: The item count, length, weight, or volume contained in the supplier’s original packaging for efficient storage, handling, and distribution.
1
Package Type:
BAG
Mounting:
Panel
Dimension:
46.23 x 28.5 mm
Type:
Uni-Color
Maximum Forward Voltage per Color:
N/A
Color:
Orange
Peak Wavelength:
N/A
Lens Shape Type:
Circular
Lens Appearance:
N/A
Lens Dimensions:
N/A
Intensity:
N/A
Viewing Angle:
N/A
Maximum Forward Current:
N/A

IN STOCK: 0

On Order: 30   can ship 12/3/26

Factory Lead-Time 22 Weeks

Price (USD)

Qty
Unit Price
1
$47.16
5
$45.60
10
$37.85
25
$37.57
50
$37.39
100
$32.03
250 +
$31.95
