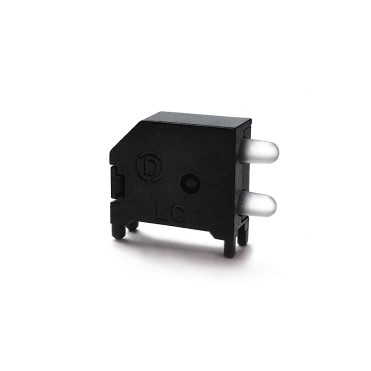

596-1818-013F

Name: 596-1818-013F
Brand: Dialight
SKU: 55613721
Price: 83.13 USD
Availability: InStock

DISCONTINUED | 596 Prism® SMD 1.6mm BiLevel Rnd W,W 2mA 13" Reel ...

View Datasheet Ask the Datasheet

RoHS Non-Compliant

REEL Packaging

Discontinued & Replaced

DESCRIPTION

The 596-1818-013F is a low-current 2mA LED assembly featuring a 1.6mm diameter silicone dome lens with bi-level prism design, supplied on a 13-inch reel with 500 pieces per reel. This surface-mount component is available in multiple LED colors including red (630nm), orange (600nm), and yellow (588nm), each with forward voltage ratings of 1.7–2.2V at 2mA operating current and luminous intensity ranging from 5.0 to 6.0 mcd at 10mA. The assembly incorporates a viewing angle of 30° at 50% intensity and features a thermal resistance of +280°C/W for red, orange, and yellow variants. Designed for low-power indicator and status display applications, this component is ideal for battery-powered devices, portable electronics, and systems requiring minimal current consumption while maintaining reliable visual indication.

Product Highlights:

Potential Applications:

Search Keywords: 5961818013F

SPECIFICATIONS

Product Attribute

Attribute Value

Select Attribute

Products found: 0

Supplier:

Dialight

Part No:

596-1818-013F

Unit of Measure:

Per Each

RoHS:

HTS:

8541100000

COO:

ECCN:

EAR99

Reel Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
