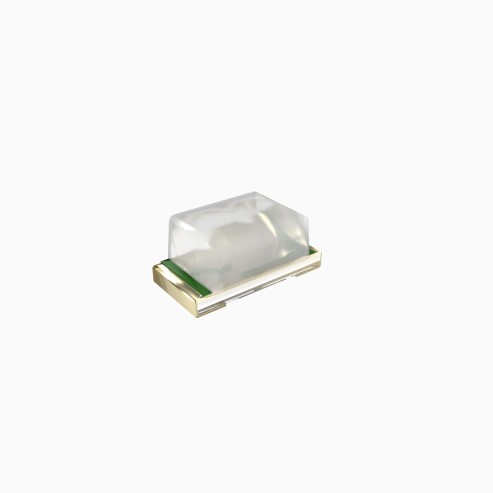

597-5004-407NF by dialight
Image is representational - see mfr. specs

597-5004-407NF

Dialight

The 597-5004-407NF is a red, 0603 surface-mount LED constructed with AlGaInP material and a white diffused epoxy lens. ...

Datasheet
RoHS Compliant
REEL Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The 597-5004-407NF is a red surface-mount LED in a standard 0603 package. It is manufactured using AlGaInP chip material and features a white diffused epoxy, providing a wide typical viewing angle of 140 degrees. Under a 20mA test condition, this LED has a typical luminous intensity of 68 mcd, a typical forward voltage of 1.9V, and a typical dominant wavelength of 626 nm. The device is rated for an operating temperature range of -40°C to +100°C and a maximum power dissipation of 78 mW. This RoHS compliant LED is ideal for status indicators, backlighting, and general-purpose illumination in compact electronic devices.

Search Keywords: 5975004407NF

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Dialight
Part No:
597-5004-407NF
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8541410000
COO:
MY
ECCN:
EAR99
Reel Pack: This product ships on a reel. Depending on the quantity ordered, you may receive full factory reels, cut tape (components on a strip cut from a reel), or a combination of both.
4000
Package Type:
REEL

IN STOCK: 0

Minimum Order Quantity: 4000

Multiple: 4000

Factory Lead-Time 12 Weeks

Price (USD)

Qty
Unit Price
4,000
$0.0967
8,000
$0.0945
12,000
$0.0931
28,000
$0.0904
52,000
$0.0884
100,000
$0.0863
152,000 +
$0.0849
Reel Package
