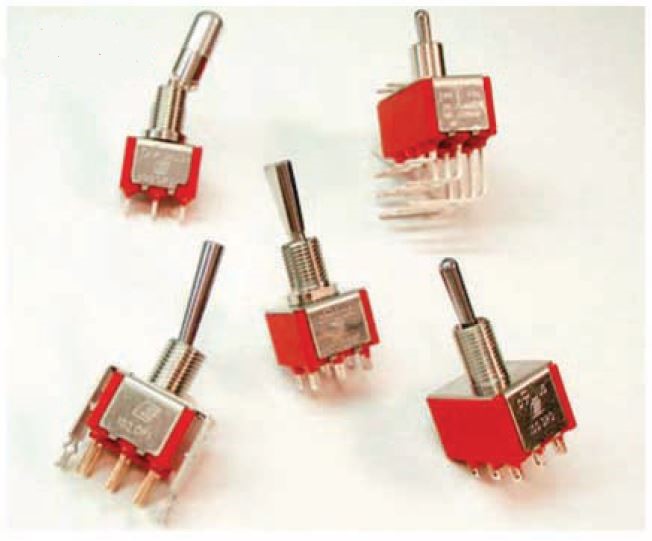

1003P1T1B4M7QE by e-switch
Image is representational - see mfr. specs

1003P1T1B4M7QE

E-Switch

Toggle Switch - 3PDT - On-None-On - 120VAC/28VDC - 5A - Silver Plated Contacts - Right Angle PC Mount - 1/4" Dia x .280" No Thread Bushing - No Hardware ...

Datasheet
RoHS Compliant
Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The 1003P1T1B4M7QE is a 3PDT (three-pole, double-throw) toggle switch designed for PC board mounting applications. It features three switching positions (ON-NONE-ON) with 9 terminals (2-3, 5-6, 8-9 in position 1; open in position 2; 2-1, 5-4, 8-7 in position 3), silver-plated contacts, and an epoxy seal for environmental protection. The switch is rated for 2 Amps at 250VAC or 5 Amps at 120VAC/28VDC, with an electrical life of 40,000 make-and-break cycles at full load and an insulation resistance of 1,000 Megaohm minimum. Operating over a temperature range of -30°C to +85°C with dielectric strength of 1,000 V RMS at sea level, this switch is ideal for industrial control panels, instrumentation, and consumer electronics requiring reliable multi-circuit switching with RoHS compliance.

Search Keywords: 1003P1T1B4M7QE

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
E-Switch
Part No:
1003P1T1B4M7QE
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536509065
COO:
CN
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
54

IN STOCK: 350

Can Ship immediately

Minimum Order Quantity: 5

Factory Lead-Time 12 Weeks

Price (USD)

Qty
Unit Price
5
$7.12
25
$6.77
54
$6.61
108
$6.51
270
$6.33
540
$5.84
1,026 +
$5.27
Suppliers Standard Package
