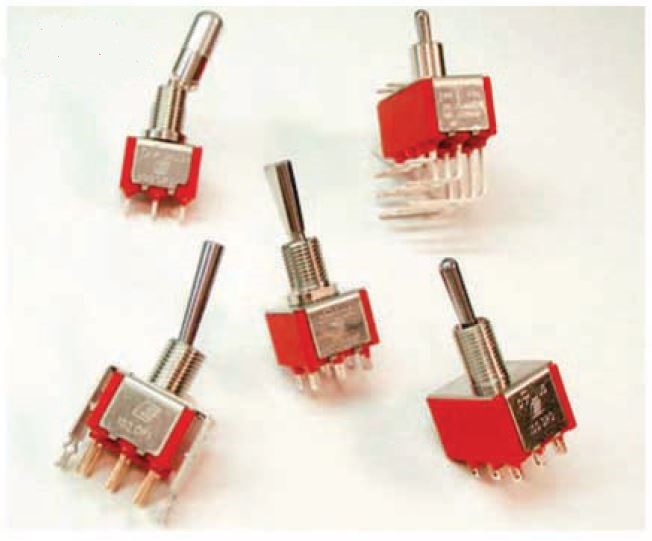

1003P3T1B1M1QE by e-switch

1003P3T1B1M1QE

E-Switch

Toggle Switch - 3PDT - On-Off-On - 120VAC/28VDC - 5A - Silver Plated Contacts - Solder Lugs - 1/4-40UNS x .350" Bushing - No Hardware ...

Datasheet
RoHS Compliant
Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

Introducing the versatile E-SWITCH part 1003P3T1B1M1QE, a high-quality Toggle Switch designed for reliable performance in a variety of applications. This 3PDT switch features an On-Off-On configuration and is rated for 120VAC/28VDC at 5A. The silver plated contacts ensure excellent conductivity and durability, while the solder lugs make installation easy. The 1/4-40UNS x .350" bushing provides a secure fit, and this switch comes without hardware for a customizable installation. Trust E-SWITCH for top-notch quality and performance in your electronic projects.

Search Keywords: 1003P3T1B1M1QE

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
E-Switch
Part No:
1003P3T1B1M1QE
RoHS:
Yes
HTS:
8536509065
COO:
CN
ECCN:
EAR99
Supplier Standard Pack:  This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
270
Pole Throw Configuration:
3P2T (3PDT)
Switch Configuration:
On Off On
Contact Rating @ Voltage:
5@120VAC 28VDC A
Actuator Style:
Round Lever
Mounting:
Panel Mount with Threads
Thread Size:
1/4-40
Body Orientation:
Straight
Terminal Type:
Solder
Dimension:
12.7 x 16.51 x 33.96 mm
Operating Temperature:
-30 to 85 °C

IN STOCK: 230

Can Ship immediately

MOQ for In Stock Qty: 5

MOQ for out of Stock Qty: 68

Factory Lead-Time 12 Weeks

Price (CAD)

Qty
Unit Price
5
$12.588
10
$10.490
25
$9.893
50
$9.372
68
$9.157
135
$8.913
203
$8.867
270 +
$7.963
Suppliers Standard Package
Log in for special pricing
Click for Quote
Please Note: Tariffs may apply for U.S. shipments
