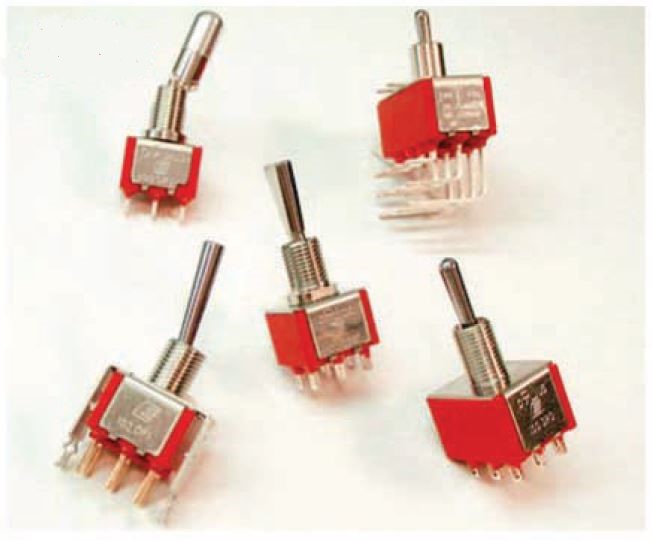

1003P3T1B1M2RE by e-switch
Image is representational - see mfr. specs

1003P3T1B1M2RE

E-Switch

The 1003P3T1B1M2RE is a 3PDT toggle switch with a three-position ON-OFF-ON function. ...

Datasheet
RoHS Compliant
Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The 1003P3T1B1M2RE is a 3PDT (Triple Pole, Double Throw) toggle switch that provides a three-position ON-OFF-ON function. It is rated for low-power applications at 0.4VA at 20V maximum (AC or DC) and features gold-plated contacts for reliable connectivity. Engineered for a long operational life, it is rated for 40,000 make-and-break cycles at full load. The switch is designed to perform in demanding environments, with an operating temperature range of -30°C to 85°C and a dielectric strength of 1,000 V RMS, making it a robust component for various electronic applications.

Search Keywords: 1003P3T1B1M2RE

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
E-Switch
Part No:
1003P3T1B1M2RE
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536509065
COO:
CN
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
54
Pole Throw Configuration:
3PDT
Switch Configuration:
On Off On
Contact Rating @ Voltage:
0.4@20VAC 20VDC A
Actuator Style:
Round Lever
Mounting:
PC Mount with Threads
Thread Size:
1/4-40
Body Orientation:
Straight
Terminal Type:
PC Pins
Dimension:
12.7mm x 16.51mm x 31.39 mm
Operating Temperature:
-30 to 85 °C

IN STOCK: 162

Can Ship immediately

MOQ for In Stock Qty: 5

MOQ for out of Stock Qty: 54

Factory Lead-Time 12 Weeks

Price (USD)

Qty
Unit Price
5
$15.18
10
$12.03
25
$10.51
54
$9.83
108
$9.52
162
$9.13
216 +
$8.28
Suppliers Standard Package
