100SP1T1B1M2QEH by e-switch

100SP1T1B1M2QEH

E-Switch

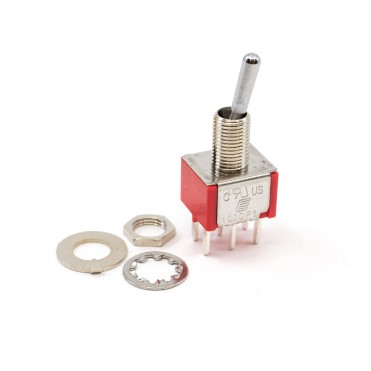

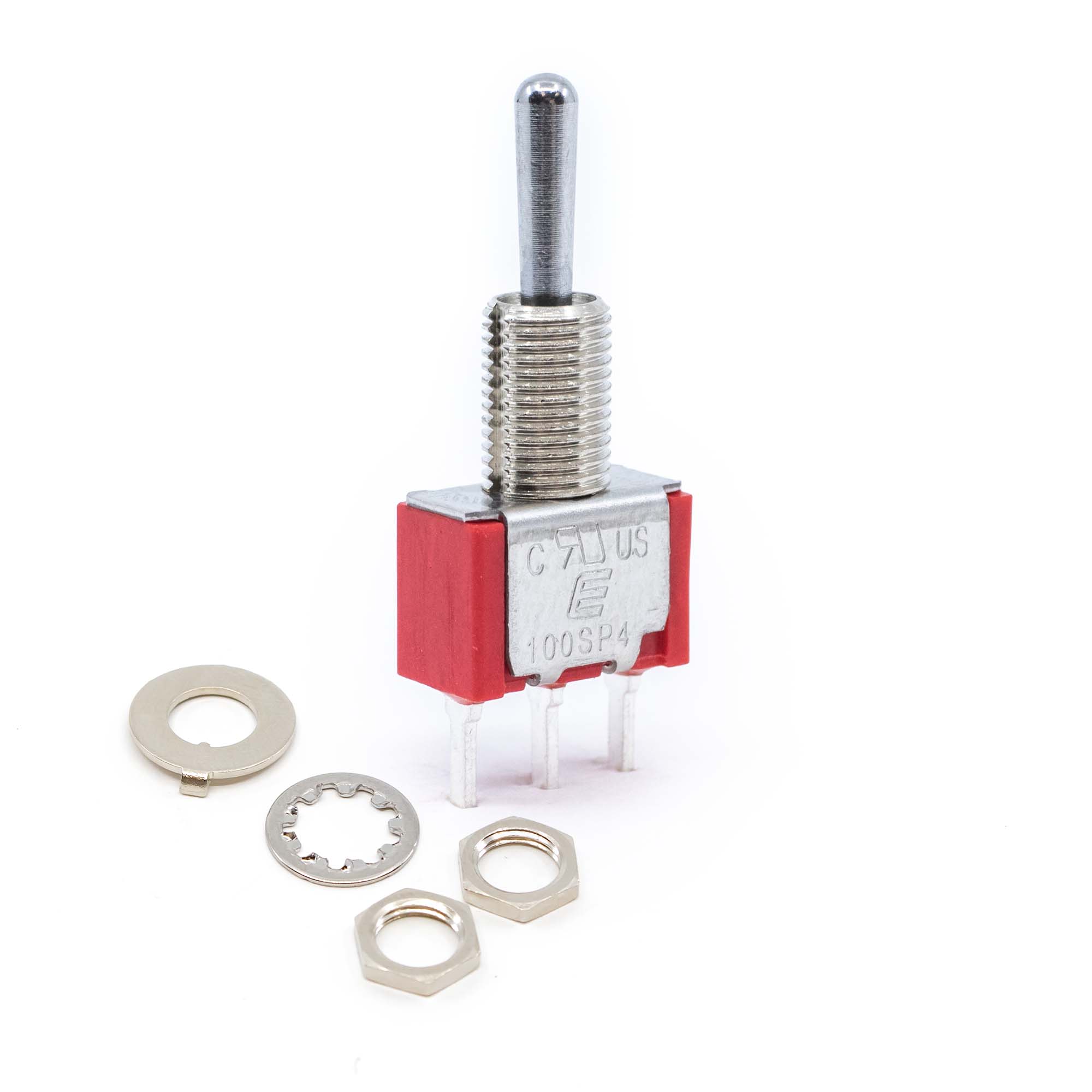

Toggle Switch - SPDT - On-None-On - 120VAC/28VDC - 5A - Silver Plated Contacts - PC Mount - 1/4-40UNS x .350" Bushing - Hardware Incl ...

Datasheet
RoHS Compliant
Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The E-SWITCH part 100SP1T1B1M2QEH is a reliable toggle switch that features a Single Pole Double Throw (SPDT) configuration, allowing for three different positions: On-None-On. This versatile switch is compatible with both 120VAC and 28VDC, making it suitable for a wide range of applications. With a maximum current rating of 5A, this switch ensures efficient and safe operation. The silver plated contacts guarantee enhanced conductivity and durability, providing reliable performance over a long lifespan. This toggle switch is designed for easy installation with its PC mount configuration, and it comes with a 1/4-40UNS x .350 bushing, ensuring a secure and stable fit. For added convenience, the necessary hardware is included, making the installation process hassle-free. Whether you need a toggle switch for industrial, commercial, or residential use, the E-SWITCH 100SP1T1B1M2QEH is a reliable and durable choice that will meet your requirements.

Search Keywords: 100SP1T1B1M2QEH

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
E-Switch
Part No:
100SP1T1B1M2QEH
RoHS:
Yes
HTS:
8536509065
COO:
CN
ECCN:
EAR99
Supplier Standard Pack:  This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
96
Pole Throw Configuration:
1P2T (SPDT)
Switch Configuration:
On None On
Contact Rating @ Voltage:
5@120VAC 28VDC A
Actuator Style:
Round Lever
Mounting:
PC Mount with Threads
Thread Size:
1/4-40
Body Orientation:
Straight
Terminal Type:
PC Pins
Operating Temperature:
-30 to 85 °C

IN STOCK: 120

Ships today, if you order in

On Order: 1,056   can ship 1/22/26

Minimum Order: 10

Factory Lead-Time 13 Weeks

Price (USD)

Qty
Unit Price
10
$2.616
96
$2.451
192
$2.215
288
$2.101
576
$1.957
1,056
$1.854
2,592
$1.833
5,088 +
$1.803
Suppliers Standard Package
Log in for special pricing
Click for Quote
Please Note: Tariffs may apply for U.S. shipments
