1RRED by e-switch

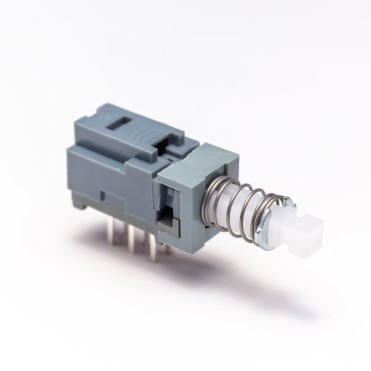

Image is representational - see manufacturer specifications
E-Switch Authorized Distributor

1RRED

Switch Access Round Cap Push Button Switch ...

View Datasheet Ask the Datasheet
RoHS Compliant
Packaging
Accessories
Certificate of Compliance

DESCRIPTION

The 1RRED is a red plastic push-button actuator manufactured by E-SWITCH, designed for use in electronic switching applications. Constructed from ABS material with UL94V0 flame rating, it features a compact design with critical dimensions of 2.84 ± 0.05 mm in height and width, ensuring consistent performance across production batches. The actuator is colored red per PANTONE 201C specification and incorporates a 20° angled detail feature for ergonomic operation. With general tolerances of ±0.15 mm and a general tolerance of ±0.002 inches on critical dimensions, this component is suitable for industrial control panels, consumer electronics, and safety-critical applications where reliable tactile feedback and flame-resistant materials are required.

Search Keywords: 1RRED

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
E-Switch
Part No:
1RRED
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8538906000
COO:
TW
ECCN:
EAR99
Supplier's Standard Package: The item count, length, weight, or volume contained in the supplier’s original packaging for efficient storage, handling, and distribution.
25000
Type:
Round Cap
Switch Type:
Push Button Switch
Color:
Red

IN STOCK: 14,368

Ships today, if you order in

Minimum Order Quantity: 250

Factory Lead-Time 19 Weeks

Price (USD)

Qty
Unit Price
250
$0.1749
2,500
$0.1228
5,000
$0.1153
7,500
$0.1121
25,000
$0.1078
50,000
$0.1075
100,000
$0.1073
150,000 +
$0.1070
Supplier's Standard Package
