EG2219 by e-switch

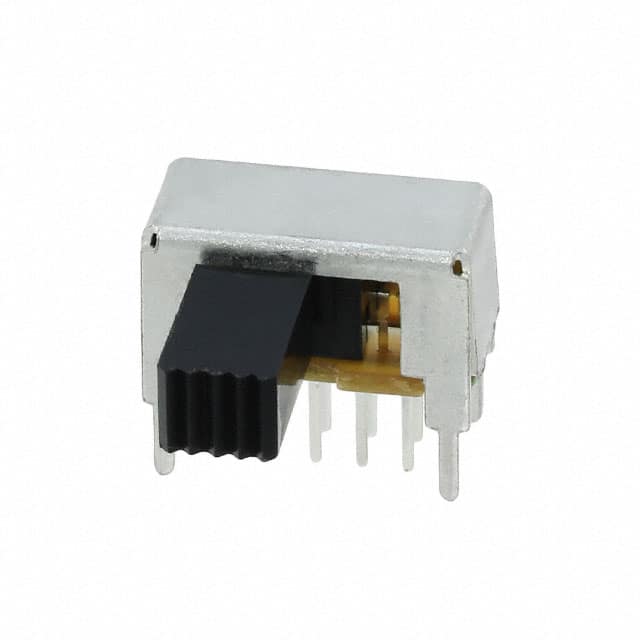

Image is representational - see manufacturer specifications
E-Switch Authorized Distributor

EG2219

Slide Switch - DPDT - 500mA - 15VDC - Standard Actuator - 9.00mm Actuator Length - PC Pin - Through Hole - Right Angle.

View Datasheet Ask the Datasheet
RoHS Compliant
Packaging
Accessories
Certificate of Compliance

DESCRIPTION

The EG2219 slide switch has copper alloy contacts with silver finish. Typically used for: computer servers/peripherals, consumer electronics, instrumentation, test and measurement. Operating temperature range is from -20°C to 70°C.

Search Keywords: EG2219

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
E-Switch
Part No:
EG2219
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536509050
COO:
CN
ECCN:
EAR99
Supplier's Standard Package: The item count, length, weight, or volume contained in the supplier’s original packaging for efficient storage, handling, and distribution.
250
Mounting:
Bracket Mount/PCB Through Hole
Body Orientation:
Right Angle
Actuator Style:
Extended Side Slide
Pole Throw Configuration:
DPDT
Switch Configuration:
N/A
Contact Rating @ Voltage:
N/A
Contact Plating:
Silver
Operating Temperature:
-20 to 70 °C
Termination Style:
PC Pins
Dimension:
13.8 x 15.5 x 8.5 mm

IN STOCK: 5,119

Can Ship immediately

Minimum Order Quantity: 250

Multiple: 250

Factory Lead-Time 11 Weeks

Price (USD)

Qty
Unit Price
1
$0.7840
250
$0.7128
500
$0.6777
1,000
$0.6407
2,500
$0.6108
5,000
$0.5974
7,500
$0.5953
10,000
$0.5943
15,000 +
$0.5923
