TL1105SPF160Q by e-switch

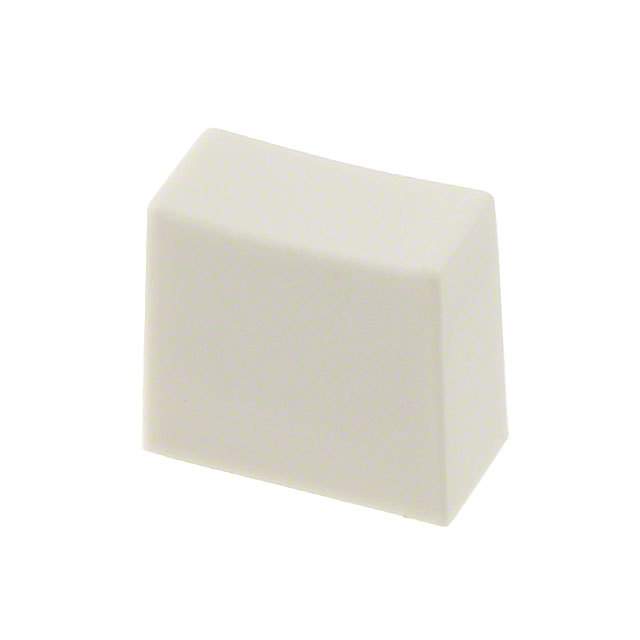

Image is representational - see manufacturer specifications
E-Switch Authorized Distributor

TL1105SPF160Q

Switch Tactile N.O. SPST Square Button PC Pins 0.05A 12VDC 1.57N Thru-Hole ...

View Datasheet Ask the Datasheet
RoHS Compliant
Packaging
Accessories
Certificate of Compliance

DESCRIPTION

The TL1105SPF160Q is a miniature tactile pushbutton switch featuring a single-pole single-throw (SPST) circuit configuration designed for compact electronic applications. It delivers an operating force of 160±50 gf with a travel distance of 0.25 mm +0.2/-0.1 mm, providing tactile feedback for user input. The switch is rated for 50 mA at 12 VDC with silver contact material and a maximum contact resistance of 100 mO, ensuring reliable electrical performance over 100,000 cycles minimum. Operating across a temperature range of -40°C to 85°C, this switch is well-suited for consumer electronics, industrial control panels, and portable devices requiring durable, responsive switching functionality.

Search Keywords: TL1105SPF160Q

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
E-Switch
Part No:
TL1105SPF160Q
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536509033
COO:
CN
ECCN:
EAR99
Supplier's Standard Package: The item count, length, weight, or volume contained in the supplier’s original packaging for efficient storage, handling, and distribution.
750
Dimension:
6 x 7.9 x 13.6 mm
Mounting:
PCB Through Hole
Pole Throw Configuration:
SPST
Switch Configuration:
N.O.
Actuator Style:
Square Button
Operating Force:
1.57 N
Contact Rating @ Voltage:
0.05@12VDC A
Illumination Type:
N/R
Body Orientation:
Straight
Termination Style:
PC Pins
Seal:
N/A
Seal Location:
N/A

IN STOCK: 15,187

Can Ship immediately

Minimum Order Quantity: 750

Multiple: 750

Factory Lead-Time 11 Weeks

Price (USD)

Qty
Unit Price
750
$0.1414
1,500
$0.1394
3,000
$0.1339
5,250
$0.1327
10,500
$0.1324
25,500
$0.1320
50,250
$0.1316
100,500 +
$0.1313
Supplier's Standard Package
