TL1265RQSCLR by e-switch

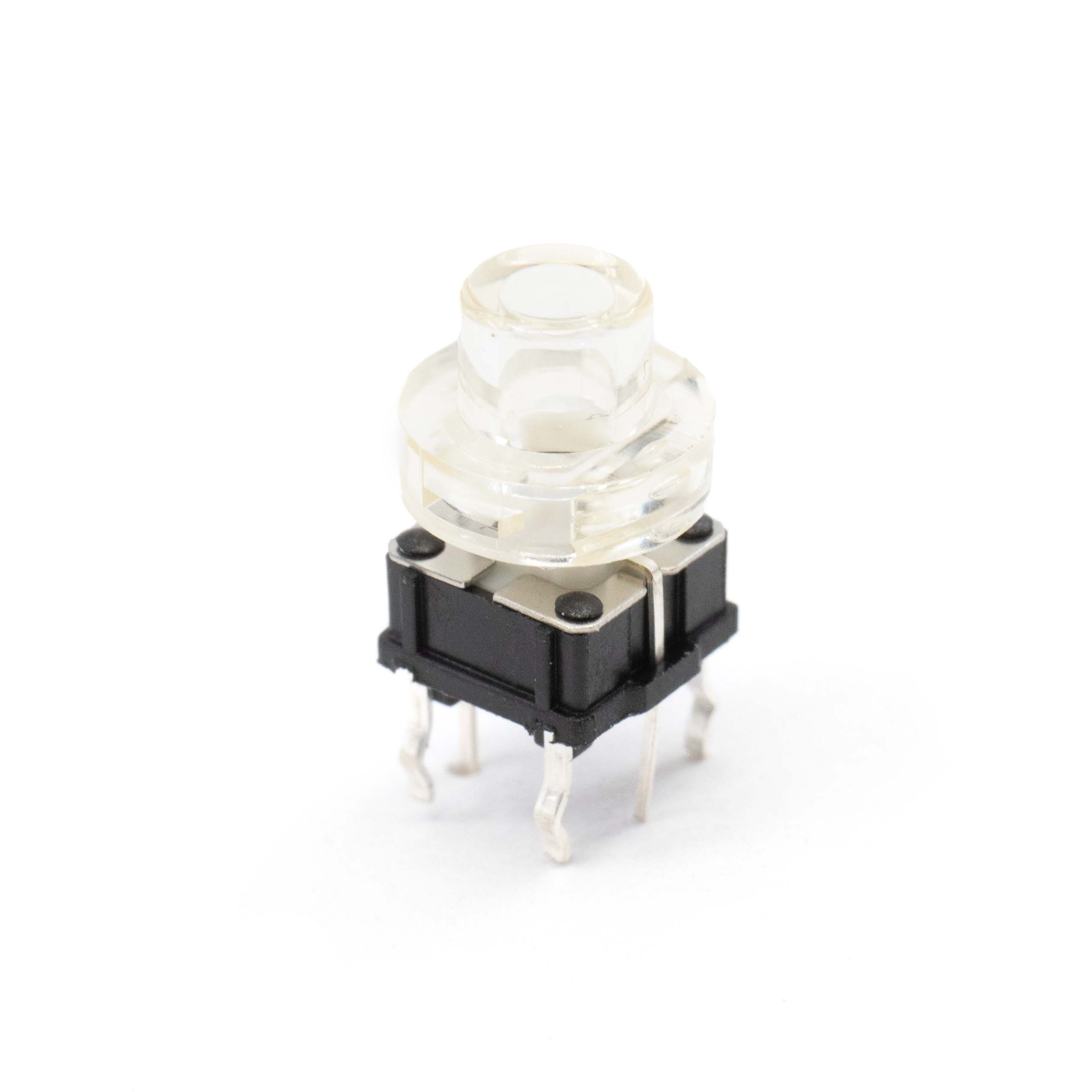

Image is representational - see mfr. specs

TL1265RQSCLR

E-Switch

Switch Tactile OFF (ON) SPST Round Button PC Pins 0.05A 12VDC 1.57N Thru-Hole ...

Datasheet
RoHS Compliant
Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The TL1265RQSCLR is an SPST tactile pushbutton switch with an integrated red LED indicator, designed for user interface applications requiring visual feedback. The switch features a 50 mA, 12 VDC rating with a travel distance of 0.2 ±0.1 mm and an operating force of 160±50 gf, providing responsive tactile feedback. The integrated red LED has a forward current of 20 mA, forward voltage of 1.95 V typical to 2.5 V maximum, and a luminous intensity of 1,800 mcd, ensuring bright and visible indication. The switch maintains contact resistance of 100 mO maximum with silver contact material and achieves an operating life of 500,000 cycles, making it suitable for consumer electronics, industrial controls, and appliances requiring durable, illuminated push-button interfaces.

Search Keywords: TL1265RQSCLR

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
E-Switch
Part No:
TL1265RQSCLR
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536509033
COO:
CN
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
100
Dimension:
6.8 x 7 x 12 mm
Mounting:
PCB Through Hole
Pole Throw Configuration:
SPST
Switch Configuration:
Off (On)
Actuator Style:
Round Button
Operating Force:
1.57 N
Contact Rating @ Voltage:
0.05@12VDC A
Illumination Type:
LED
Body Orientation:
Straight
Termination Style:
PC Pins
Seal Location:
N/A

IN STOCK: 0

On Order: 1,000   can ship 8/24/26

Minimum Order Quantity: 100

Multiple: 100

Factory Lead-Time 14 Weeks

Price (USD)

Qty
Unit Price
100
$2.59
300
$2.42
500
$2.35
1,000
$2.25
2,500
$1.92
5,000
$1.67
7,500
$1.62
10,000 +
$1.48
Suppliers Standard Package
