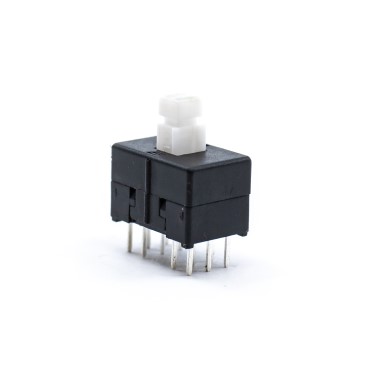

TL2201EEYA by e-switch
Image is representational - see mfr. specs

TL2201EEYA

E-Switch

Switch Push Button ON ON DPDT Plunger 0.1A 30VDC Latching PC Pins Thru-Hole ...

Datasheet
RoHS Compliant
Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The E-SWITCH TL2201EEYA is a high-quality push-button switch designed for various electronic applications. With its DPDT (double-pole, double-throw) configuration, this switch allows for versatile circuit connections. Its latching feature ensures the switch stays in the desired position until manually operated again. The switch has a maximum rating of 0.1A and 30VDC, making it suitable for low-power applications. With its reliable and durable construction, it is ideal for use in various electronic devices. The switch is designed with PC pins for easy and secure installation onto a PCB (printed circuit board) using through-hole soldering.

Search Keywords: TL2201EEYA

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
E-Switch
Part No:
TL2201EEYA
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536509033
COO:
CN
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
700
Mounting:
Through Hole
Pole Throw Configuration:
DPDT
Bushing Type:
N/R
Switch Configuration:
On On
Contact Rating @ Voltage:
0.1A@30 VDC
Actuator Style:
Plunger
Illumination:
N/R
Terminal Type:
PC Pins
Body Orientation:
Straight
Dimension:
8.5 x 8.5 x 14.2 mm

IN STOCK: 0

On Order: 3,443   can ship 8/3/26

Minimum Order Quantity: 50

Factory Lead-Time 15 Weeks

Price (USD)

Qty
Unit Price
50
$0.6553
250
$0.6225
700
$0.5914
1,400
$0.5619
2,800
$0.5337
5,600
$0.5071
7,700
$0.4816
15,400 +
$0.4576
Suppliers Standard Package
Log in for special pricing Click for Quote Price Match Request
Please Note: Tariffs may apply for U.S. shipments

Tools/3D Models

Product Guides
