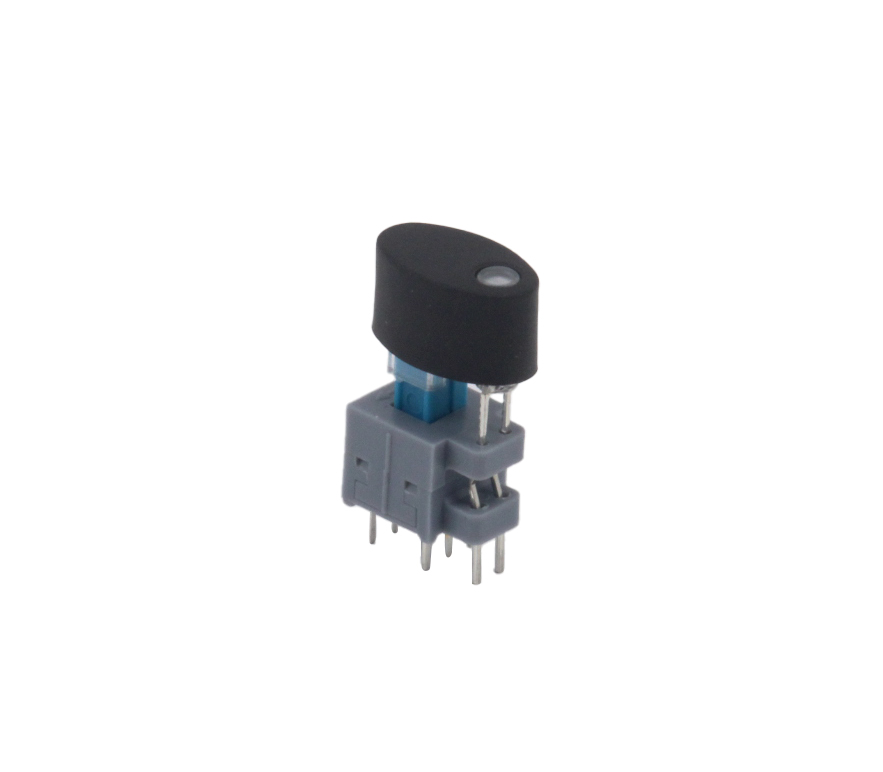

TL2205EEBPYB by e-switch

TL2205EEBPYB

E-Switch

Switch Push Button ON (ON) DPDT Plunger 0.1A 30VDC Momentary Contact Thru-Hole PC Pins Tray ...

Datasheet
RoHS Compliant
Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The E-SWITCH part TL2205EEBPYB is a high-quality, reliable push button switch designed for various electronic applications. This switch is easy to use and comes with a short Description: Switch Push Button ON (ON) DPDT Plunger 0.1A 30VDC Momentary Contact Thru-Hole PC Pins Tray.With a durable construction and a sleek design, this push button switch offers a momentary contact and has a double-pole, double-throw (DPDT) configuration. It provides a 0.1A current rating along with a 30VDC voltage rating, making it suitable for a wide range of low-voltage applications.Featuring thru-hole PC pins, this switch offers easy installation and secure soldering onto printed circuit boards (PCBs). Whether used in consumer electronics, industrial equipment, or automotive applications, the TL2205EEBPYB push button switch guarantees reliable performance and long-lasting durability.This switch is available in a tray packaging, making it convenient for bulk manufacturing and assembly processes. If you are looking for a premium push button switch that delivers excellent functionality and versatility, the TL2205EEBPYB is an ideal choice.

Search Keywords: TL2205EEBPYB

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
E-Switch
Part No:
TL2205EEBPYB
RoHS:
Yes
HTS:
8536509033
COO:
CN
ECCN:
EAR99
Supplier Standard Pack:  This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
63
Mounting:
Through Hole
Pole Throw Configuration:
DPDT
Bushing Type:
N/R
Switch Configuration:
On Off
Contact Rating @ Voltage:
0.1A@30 VDC
Actuator Style:
Plunger
Illumination:
Yellow,LED
Terminal Type:
PC Pins
Body Orientation:
Straight
Dimension:
8.5 x 14.2 x 21.45 mm

IN STOCK: 29

Ships today, if you order in

You may purchase in-stock quantity up to 29

On Order: 2,520   can ship 3/25/26

MOQ for In Stock Qty: 63

Available in less than min: 29

MOQ for out of Stock Qty: 252

Multiple: 63

Factory Lead-Time 21 Weeks

Price (USD)

Qty
Unit Price
1
$2.934
63
$2.668
126
$2.493
252
$2.410
504
$2.318
756
$2.287
1,008 +
$2.266
Suppliers Standard Package
Log in for special pricing
Click for Quote
Please Note: Tariffs may apply for U.S. shipments
