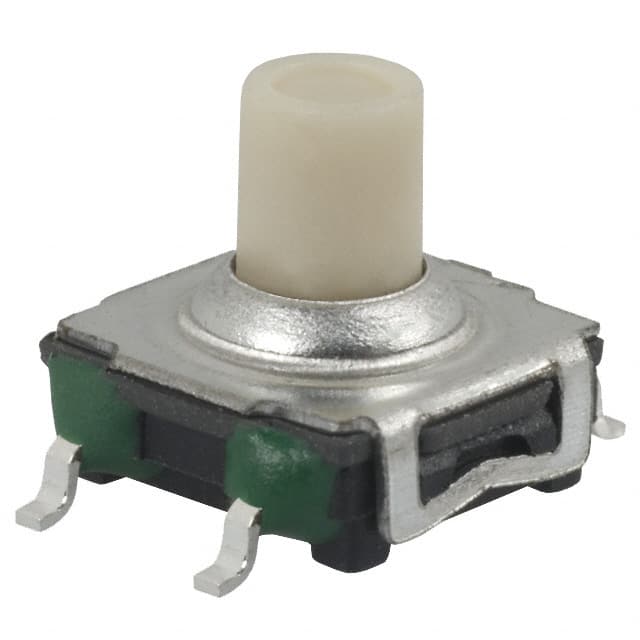

TL6120CF300QG by e-switch
Image is representational - see mfr. specs

TL6120CF300QG

E-Switch

Tactile Switch - SPST-NO - Top Actuated - 0.05A @ 12VDC - Standard Actuator - 6.90mm Actuator Height off PCB - Non-Illuminated - 300gf Operating Force - Process Sealed - Gull Wing - Surface Mount.

Datasheet
RoHS Compliant
REEL Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The TL6120CF300QG is tactile switch with polyamide (PA), nylon actuator and silver plated contacts. Outline dimensions of this switch are 7.40mm x 7.40mm. Operating temperature range is from -40°C to 85°C.

Search Keywords: TL6120CF300QG

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
E-Switch
Part No:
TL6120CF300QG
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536509033
COO:
VN
ECCN:
EAR99
Reel Pack: This product ships on a reel. Depending on the quantity ordered, you may receive full factory reels, cut tape (components on a strip cut from a reel), or a combination of both.
500
Package Type:
REEL
Dimension:
7.2mm x 10mm x 6.9 mm
Mounting:
PCB Surface Mount
Pole Throw Configuration:
SPST
Switch Configuration:
N.O.
Actuator Style:
Round Button
Operating Force:
2.94 N
Contact Rating @ Voltage:
0.05@50VDC A
Illumination Type:
N/R
Body Orientation:
Straight
Termination Style:
Gull Wing
Seal:
Process
Seal Location:
N/A

IN STOCK: 18

Can Ship immediately

Buy all 18 in-stock or the regular minimum order quantity of 500

Stock lot only: 18

MOQ for In Stock Qty: 500

MOQ for out of Stock Qty: 1250

Factory Lead-Time 19 Weeks

Price (USD)

Qty
Unit Price
1
$0.5866
500
$0.5332
1,250
$0.5115
2,500
$0.4883
3,750
$0.4859
5,000 +
$0.4823
Reel Package
Log in for special pricing Click for Quote Price Match Request
Please Note: Tariffs may apply for U.S. shipments

Tools/3D Models

Product Guides
