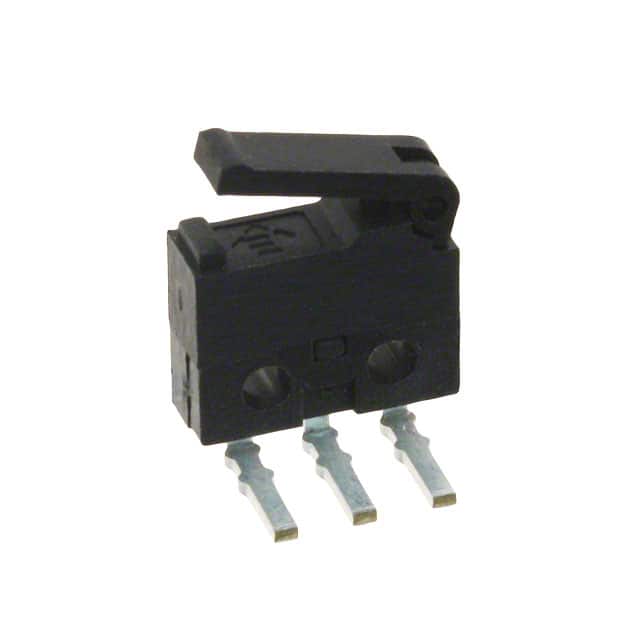

TS0101F020V4 by e-switch

TS0101F020V4

E-Switch

Sub-Miniature Snap Action Switch - SPDT - 300mA - 6VDC - Straight Lever Actuator - 20gf Operating Force - PC Pin Left-Angle Long - Through Hole.

Datasheet
RoHS Compliant
Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The TS0101F020V4 is sub-miniature snap action switch typically used for security/detection, appliance, instrumentation and power tools. Operating temperature range is from -25°C to 85°C.

Search Keywords: TS0101F020V4

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
E-Switch
Part No:
TS0101F020V4
RoHS:
Yes
HTS:
8536509040
COO:
CN
ECCN:
EAR99
Supplier Standard Pack:  This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
2000
Mounting:
PCB Mount
Pole Throw Configuration:
SPDT
Switch Configuration:
N.O./N.C.
Actuator Material/Style:
Lever
Contact Rating @ Voltage:
0.3@6VDC A
Maximum Movement Differential:
N/A
Operating Force:
0.2 N
Termination Style:
PC Pins
Body Orientation:
Right Angle
IP Rating:
N/A

IN STOCK: 264

Ships today, if you order in

Minimum Order: 25

Factory Lead-Time 14 Weeks

Price (USD)

Qty
Unit Price
25
$0.893
250
$0.697
500
$0.637
2,000
$0.579
4,000
$0.576
6,000
$0.540
8,000
$0.538
16,000 +
$0.535
Suppliers Standard Package
