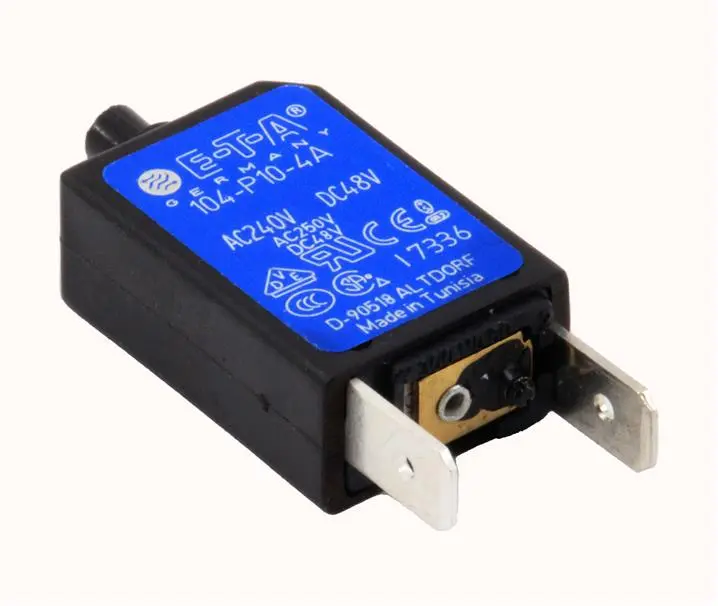

104-P10-4A by e-t-a engineering technology
Image is representational - see mfr. specs

104-P10-4A

E-T-A Engineering Technology

Circuit Breaker Thermal Push-to-Reset PCB Mount A6 .250 QC 1P 250VAC/48VDC 4A ...

Datasheet
RoHS Compliant
Box Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The 104-P10-4A is a miniaturised single pole thermal overcurrent circuit breaker designed for integral mounting with push-to-reset, tease-free, trip-free snap action mechanism compliant with EN 60934 (IEC 60934). This device features P10 blade terminals (DIN 46244-A6.3-0.8, QC .250) and is rated for 4 A at AC 240 V or DC 48 V, with an internal resistance of 0.067 O. The circuit breaker operates across an ambient temperature range of -20°C to +60°C and provides an interrupting capacity of 6 × IN at DC, with typical life expectancy of 3,000 operations at 2 × IN under inductive conditions. It is approved to multiple international standards including VDE EN 60934, UL 1077, CSA C22.2 No 235, and CQC GB 17701, making it suitable for motors, transformers, solenoids, printed circuit boards, hand-held machines, appliances, marine applications, and caravans.

Search Keywords: 104P104A

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
E-T-A Engineering Technology
Part No:
104-P10-4A
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536200020
COO:
TN
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
50
Package Type:
Box

IN STOCK: 44

Can Ship immediately

Manufacturer Stock: 300   can ship 5/25/26

Minimum Order Quantity: 5

Factory Lead-Time 6 Weeks can ship 6/23/26

Price (USD)

Qty
Unit Price
5
$14.49
25
$13.21
50
$12.67
100
$12.16
250
$10.30
500
$10.04
1,000 +
$9.92
Suppliers Standard Package
Log in for special pricing Click for Quote Price Match Request

Tools/3D Models

Product Guides
