1170-21-20A by e-t-a engineering technology

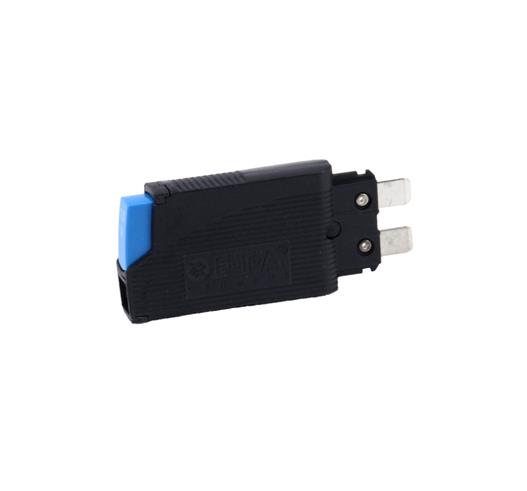

Image is representational - see mfr. specs

1170-21-20A

E-T-A Engineering Technology

The 1170-21-20A is a 20A, single-pole, thermal automotive circuit breaker with blade terminals for plug-in mounting. ...

Datasheet
RoHS Compliant
Box Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The 1170-21-20A is a compact, single-pole thermal circuit breaker rated for 20A. It features a push-to-reset, trip-free, snap-action mechanism with a separate manual release. This model is designed with blade terminals and retaining clips for standard automotive fuse blocks, conforming to DIN 72581, part 3. It operates at a nominal voltage of DC 24V and has an interrupting capacity of 400A. The device is suitable for extra low voltage wiring systems in vehicles and marine craft, offering reliable protection in an ambient temperature range of -40°C to +85°C.

Search Keywords: 11702120A

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
E-T-A Engineering Technology
Part No:
1170-21-20A
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536200040
COO:
ID
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
50
Package Type:
Box
Type:
Thermal Automotive2867
Voltage Rating:
282868VDC
Number of Poles:
12860
Current Rating:
20 A
Terminal Design:
Blade2865
Operating Temperature:
-40 to 85 °C
Mounting:
Plug-In2859

IN STOCK: 28

Ships today, if you order in

Manufacturer Stock: 1,643   can ship 5/8/26

Minimum Order Quantity: 5

Factory Lead-Time 6 Weeks can ship 6/5/26

Price (USD)

Qty
Unit Price
5
$13.51
25
$12.81
50
$11.21
100
$10.32
250
$9.26
500
$8.73
1,000 +
$8.64
Suppliers Standard Package
Log in for special pricing Click for Quote Price Match Request
Please Note: Tariffs may apply for U.S. shipments

Tools/3D Models

Product Guides
