2-5700-IG1-K10-DD-15A by e-t-a engineering technology

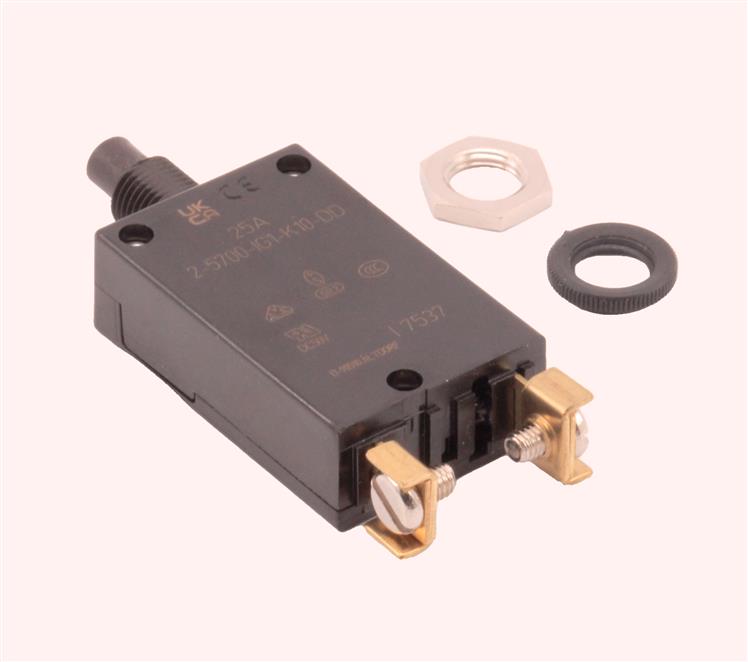

Image is representational - see manufacturer specifications
E-T-A Engineering Technology Authorized Distributor

2-5700-IG1-K10-DD-15A

Circuit Breaker Thermal 1Pole 15A 250VAC/28VDC ...

View Datasheet Ask the Datasheet
RoHS Compliant
Box Packaging
Accessories
Certificate of Compliance

DESCRIPTION

The 2-5700-IG1-K10-DD-15A is a single-pole thermal overcurrent circuit breaker featuring a press-to-reset, tease-free, trip-free snap action mechanism with push-to-release/push-to-reset (DD) operation. It is equipped with an iG1 moulded threadneck (3/8"-27UNS-2A) for panel mounting and M4x6 screw terminals (K10 design) for secure electrical connections. The breaker is rated for 15 A at AC 250 V or DC 28 V, with an internal resistance of less than 0.02 O at this current rating, and operates reliably across an ambient temperature range of -20°C to +60°C. It meets international safety standards including IEC/EN 60934 and UL 1077, with an interrupting capacity of 300 A at the 15 A rating. This circuit breaker is ideal for protecting motors, transformers, solenoids, battery chargers, power supplies, and other electrical equipment in industrial and commercial applications requiring reliable overcurrent protection.

Search Keywords: 25700IG1K10DD15A

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
E-T-A Engineering Technology
Part No:
2-5700-IG1-K10-DD-15A
Unit of Measure:
Per Each
RoHS:
Yes
COO:
TN
ECCN:
EAR99
Supplier's Standard Package: The item count, length, weight, or volume contained in the supplier’s original packaging for efficient storage, handling, and distribution.
10
Package Type:
Box
Type:
Thermal2867
Voltage Rating:
2502868VAC,282868VDC
Number of Poles:
12860
Current Rating:
15 A
Terminal Design:
Screw2865
Operating Temperature:
-20 to 60 °C
Mounting:
Panel Mount2859

IN STOCK: 35

Ships today, if you order in

On Order: 100   can ship 12/11/26

Minimum Order Quantity: 10

Multiple: 10

Factory Lead-Time 10 Weeks

Price (USD)

Qty
Unit Price
10
$36.63
30
$35.82
50
$28.83
100
$26.70
250
$26.48
500
$26.41
1,000 +
$26.35
