TB100-20 by eaton electrical / coiltronics / bussmann

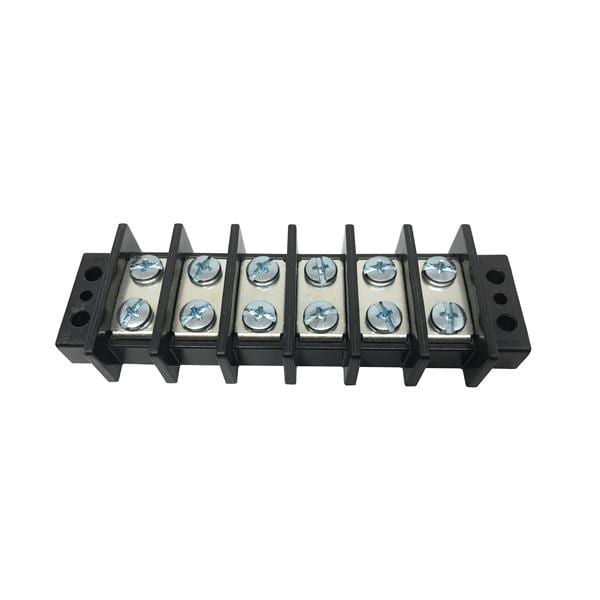

Image is representational - see manufacturer specifications
Eaton Electrical / Coiltronics / Bussmann Authorized Distributor

TB100-20

Terminal Block; Double Row; 20 Pole; #6-32 Screw Size; 250V; 20A | Bussmann by Eaton TB100-20 ...

View Datasheet Ask the Datasheet
RoHS Compliant
Packaging
Accessories
Certificate of Compliance

DESCRIPTION

TB100-20 is a double row terminal block from the Cooper Bussmann TB100 series, designed for secure wire-to-wire connections in electrical applications. This 20-pole terminal block features a 30A, 300V rating with 0.375" (9.52mm) center spacing and accommodates #14-22 AWG copper wire. The unit utilizes #6-32 philslot screws with a 9 lb-in torque rating and offers a breakdown voltage of 3600V for enhanced safety. Constructed with a black UL 94V0 thermoplastic base, tin-over-brass terminal plating, and zinc-plated steel screws, it operates reliably from -40°C to 130°C. The TB100-20 is UL/CSA listed, IEC compliant, and CE certified, making it suitable for industrial control panels, power distribution, and general electrical wiring applications.

Search Keywords: TB10020

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Eaton Electrical / Coiltronics / Bussmann
Part No:
TB100-20
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536904000
COO:
DO
ECCN:
EAR99
Supplier's Standard Package: The item count, length, weight, or volume contained in the supplier’s original packaging for efficient storage, handling, and distribution.
50

IN STOCK: 0

On Order: 37   can ship 3/24/27

Factory Lead-Time 24 Weeks

Price (USD)

Qty
Unit Price
1
$37.69
5
$33.63
10
$33.54
25
$31.67
50
$29.94
100
$29.87
250 +
$28.76
Supplier's Standard Package
Log in for special pricing

Tools/3D Models

Product Guides
