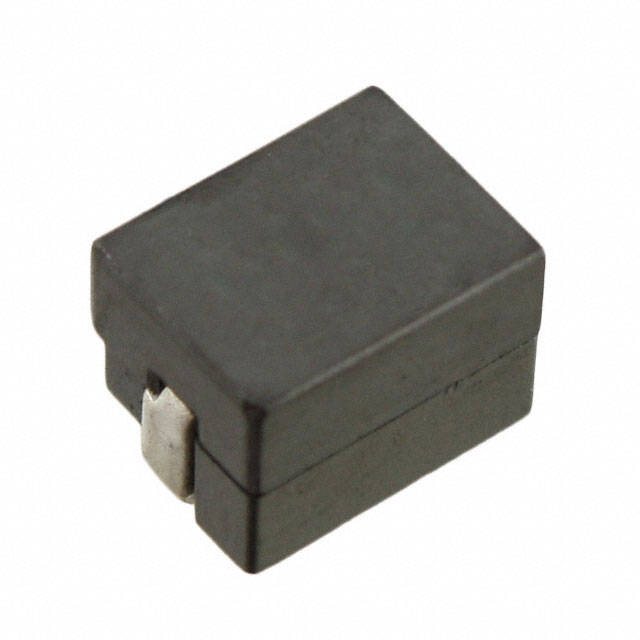

FP1007R3-R23-R by eaton electronics / bussmann
Image is representational - see mfr. specs

FP1007R3-R23-R

Eaton Electronics / Bussmann

Power Inductors-SMD 230nH 48A Flat-Pac FP1007 ...

Datasheet
RoHS Compliant
REEL Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

FP1007R3-R23-R is a high frequency, high current power inductor designed for demanding power conversion applications. It features an open circuit inductance (OCL) of 230 nH ±10%, a full load inductance (FLL) minimum of 165 nH, and a DC resistance (DCR) of 0.29 mO ±5% at 20°C. The inductor supports an Irms current of 61 amps for approximately 40°C temperature rise and saturation currents (Isat) of 48 amps at +25°C and 40 amps at +125°C for 20% rolloff. With a 10.4 x 8.0 mm surface mount footprint and 7.30 mm height, this ferrite core inductor operates across a frequency range up to 2 MHz and temperature range of -40°C to +125°C. It is ideal for servers, multi-phase and Vcore regulators, VRMs, data networking systems, and point-of-load modules.

Search Keywords: FP1007R3R23R

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Eaton Electronics / Bussmann
Part No:
FP1007R3-R23-R
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8504508000
COO:
PH
ECCN:
EAR99
Reel Pack: This product ships on a reel. Depending on the quantity ordered, you may receive full factory reels, cut tape (components on a strip cut from a reel), or a combination of both.
650
Package Type:
REEL

IN STOCK: 0

MOQ for out of Stock Qty: 163

Factory Lead-Time 14 Weeks

Price (USD)

Qty
Unit Price
163
$1.77
325
$1.33
488
$1.25
650 +
$1.22
Reel Package
Log in for special pricing Click for Quote Price Match Request
