4600N by ebm-papst

4600N

ebm-papst

AC Fans AC Tubeaxial Fan, 119x119x38mm, 115VAC, 105.9CFM, 18W, 3100RPM, 50dBA, Sintec Bearing ...

Datasheet
RoHS Compliant
Box Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

4600N is AC fans with external rotor shaded-pole motor. Impedance protected against overloading. Metal fan housing and impeller. Air intake over struts. Direction of rotation clockwise, seen on rotor. Electrical connection via 2 flat plugs 3.0 x 0.5 mm. Impeller with 3 or 5 blades, see note for fan type. Optionally available: Models with reinforced flanges and single leads. Fan housing with grounding lug for screw M 4 and UNC. Mass: 550 g. Please note our new ACmaxx Series. With identical mounting dimensions and voltages, this Series achieves higher energy efficiency. Voltage - Rated 115VAC Size / Dimension Square - 119mm L x 119mm H Width 38.00mm Air Flow 106.0 CFM (2.97m³/min) Bearing Type Sintec Fan Type Tubeaxial Noise 50.0 dB(A) Power (Watts) 18.00W RPM 3100 RPM Termination 2 Terminals Operating Temperature 14 ~ 140°F (-10 ~ 60°C)

Search Keywords: 4600N

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
ebm-papst
Part No:
4600N
RoHS:
Yes
HTS:
8414596590
COO:
CN
ECCN:
EAR99
Supplier Standard Pack:  This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Package Type:
Box
Category:
AC Fan
Dimension:
119 x 119 x 38 mm
Voltage Rating:
115 V
Power Rating:
18 W
Maximum Airflow:
105 CFM
Noise Level:
50 dB
Special Features:
None
Termination:
Terminal
Housing Material:
DieCast Aluminum
Operating Temperature:
-10 to 60 °C
  Possible Replacement options available.  See Alternatives

IN STOCK: 601

Ships today, if you order in

Manufacturer Stock: 50   can ship 12/1/25

Factory Lead-Time 17 Weeks can ship 3/19/26

Price (USD)

Qty
Unit Price
1
$47.236
5
$39.707
10
$38.162
25
$34.855
50
$32.558
100
$30.591
250 +
$27.377
Log in for special pricing
Click for Quote
Please Note: Tariffs may apply for U.S. shipments

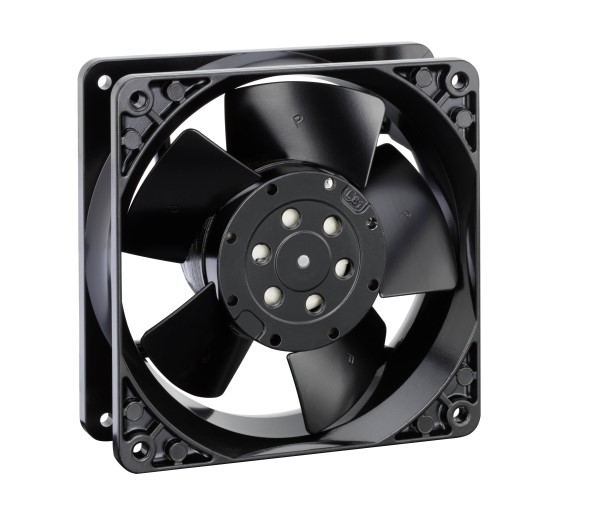

Older Equivalent
4530N
4530N
VIEW PRODUCT

Tools/3D Models

Product Guides

Product Changes

Accessories

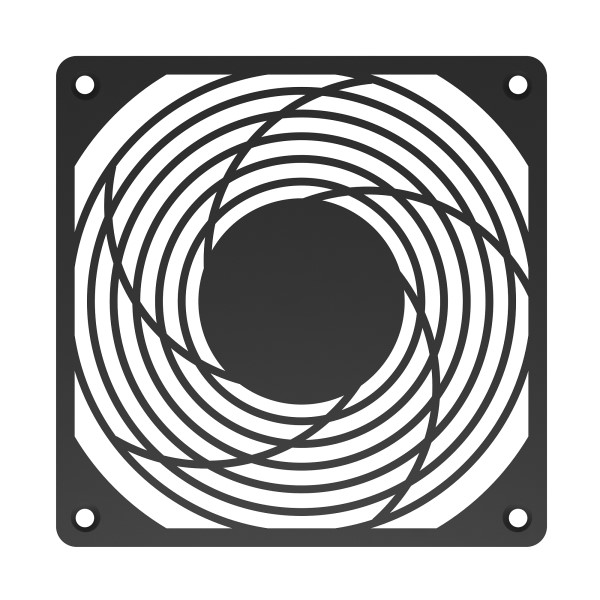

LZ30-6

Thrml Mgmt Access Finger Guard Plastic

LZ30-5

Fan Accessories Plastic Finger Guard (PPO) for 4000/9000 Series - Screw Connection - 119mm ...

LZ30P

Finger Guard Plastic - 120mm Square (Note: The ebm-papst version sold in Europe is 127mm ...

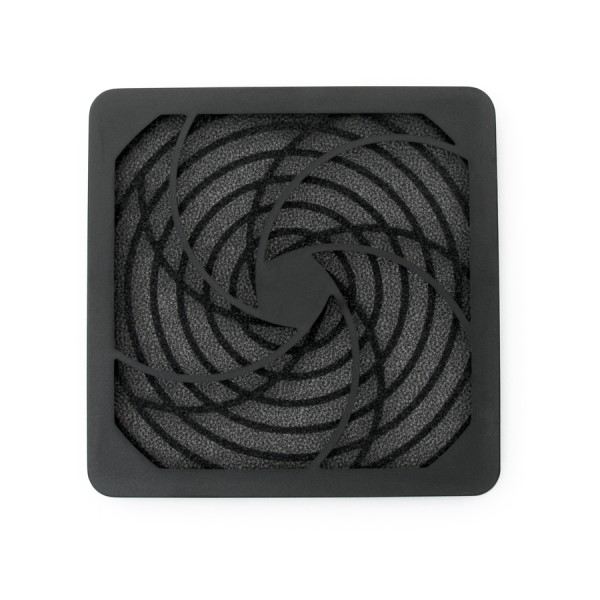

10021-1-5170

.25 Plastic Filter with Foam pad

LZ30

Fan Accessories Metal Finger Guard for 120mm Fans, 8-Ring

2678-2-2945

Plastic Fan Mount Clip - 119mm/120mm.

LZ120

Cable Assembly Plug and Cord Set - 0.61m - 21AWG - Power 2 POS PL Crimp.

LZ126

Plug And Cord Set

LZ210

Thrml Mgmt Access Screw Clip Steel

LZ40-1

Thrml Mgmt Access Bracket Black Plastic

LZ40N

Thrml Mgmt Access Fan Filter Screen Black

LZ60

Fan Accessories Filter for 4000/9000 Series - Stainless Steel Wire Mesh Filter.

SC120-W5

120mm Chrome Wire Fan Guard

SC120-P50

120mm EURO Plastic Fan Guard UL94V-0 Thur Holes

SC120-P15/30

120mm Plastic Filter Assembly 30PPI

HP100-24

Straight Fan Cord 24" - 18AWG

Show 14 More
