D2E146-HT67-01 by ebm-papst

D2E146-HT67-01

ebm-papst

AC Blower Centrifugal Ball Bearing - 230V - 171 x 196 x 110 mm - 623.9CFM - 63dBA - 2100RPM. ...

Datasheet
RoHS Compliant
Box Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

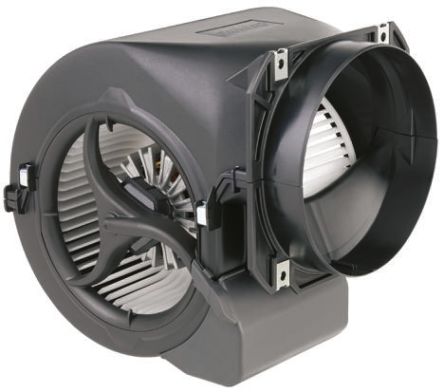

The D2E146-HT67-01 is a 230VAC Centrifugal Blower with a calotte bearing and hot galvanized sheet steel impeller. This AC fan comes with forward curved, dual inlet, black PP plastic housing and terminal box. The motor features that an anti-vibration mounted on both sides (motor suspension) and has thermal overload protector (TOP) wired internally. The surface of the rotor is partially cast in aluminum. The electrical connection is with the plug via terminal box. The rotational direction is counter clockwise direction seen on rotor.

Search Keywords: D2E146HT6701

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
ebm-papst
Part No:
D2E146-HT67-01
RoHS:
Yes
HTS:
8414599080
COO:
DE
ECCN:
EAR99
Supplier Standard Pack:  This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Package Type:
Box
Category:
AC Blower
Dimension:
171 x 196 x 110 mm
Voltage Rating:
230 V
Power Rating:
355 W
Maximum Airflow:
412 CFM
Noise Level:
66 dB
Special Features:
None
Termination:
Terminals
Housing Material:
Plastic
Operating Temperature:
-25 to 55 °C
  Different packaging options available.  See Alternatives

IN STOCK: 18

Ships today, if you order in

Factory Lead-Time 9 Weeks
