ECS-327MVATX-1-CN-TR by ecs inc. international

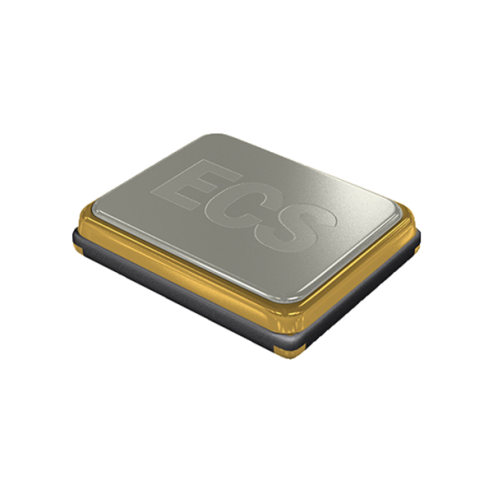

Image is representational - see mfr. specs

ECS-327MVATX-1-CN-TR

ECS INC. International

Crystal Oscillator - 32.768kHz - 1.6 to 3.63V - 25ppm -40°C+85 - SMD - 2.0 x 1.6mm ...

Datasheet
RoHS Compliant
REEL Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The ECS-327MVATX-1-CN-TR is a miniature SMD 32.768 kHz crystal oscillator featuring MultiVolt™ technology with a supply voltage range of 1.6 to 3.6 V, compatible with 1.8 V, 2.5 V, and 3.3 V power supplies. The device delivers a maximum supply current of 200 µA with a standby current of 10 µA, and offers frequency stability of ±25 ppm over the operating temperature range of -40°C to +85°C. It features a tri-state output function, rise and fall times of 30 ns, a startup time of 5 ms, and phase jitter of 1 pS (RMS), with a duty cycle of 45/55% at half Vdd. The 2.0 × 1.6 mm package size makes it ideal for RTC, low-power portable devices, industrial applications, and IoT systems where compact form factor and extended temperature range are essential.

Search Keywords: ECS327MVATX1CNTR

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
ECS INC. International
Part No:
ECS-327MVATX-1-CN-TR
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8541600010
COO:
TW
ECCN:
EAR99
Reel Pack: This product ships on a reel. Depending on the quantity ordered, you may receive full factory reels, cut tape (components on a strip cut from a reel), or a combination of both.
1000
Package Type:
REEL

IN STOCK: 4,500

Can Ship immediately

Minimum Order Quantity: 500

Factory Lead-Time 16 Weeks

Price (USD)

Qty
Unit Price
500
$0.5438
1,000
$0.5314
3,000
$0.5096
5,000
$0.4730
8,000
$0.4669
10,000
$0.4658
15,000
$0.4640
25,000 +
$0.4629
Reel Package
Log in for special pricing Click for Quote Price Match Request

Tools/3D Models

Product Guides
