634-015-263-042 by edac

634-015-263-042

EDAC

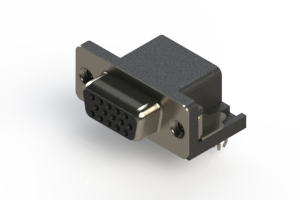

D-Sub Receptacle - 15 Contacts - 90° PC Pin - Four Prong Boardlocks - Nickel Shell - Gold Flash Contacts - -55°C to +85°C ...

Datasheet
RoHS Compliant
Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

634 Series right angle D-Sub receptacle connector with 15 socket type contacts that have gold flash plating. The contacts are standard, in a standard insulator. The board mounting features are 4 prong boardlocks, the flange is mounted with #4-40 UNC threaded inserts.

Search Keywords: 634015263042

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
EDAC
Part No:
634-015-263-042
RoHS:
Yes
HTS:
8536694040
ECCN:
EAR99
Supplier Standard Pack:  This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
25
Type:
High Density D-Sub
Body Orientation:
Right Angle
Mounting:
Through Hole
Gender:
SKT
Termination Method:
Solder
Shell Size:
E
Number of Contacts:
15
Contact Plating:
Gold over Nickel
Operating Temperature:
-55 to 125 °C

IN STOCK: 0

Minimum Order: 25

Multiple: 25

Factory Lead-Time 12 Weeks

Price (USD)

Qty
Unit Price
25
$2.441
100
$1.627
250
$1.463
500
$1.339
1,000
$1.205
2,500
$1.154
5,000
$1.123
7,500 +
$1.092
Suppliers Standard Package
Log in for special pricing
Click for Quote
