C7D0124N-C by electroswitch

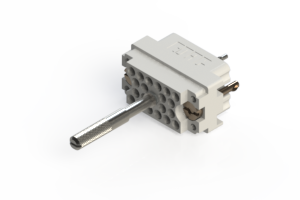

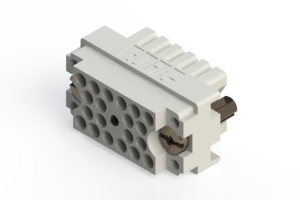

Image is representational - see mfr. specs

C7D0124N-C

Electroswitch

Fully Enclosed Rotary Switch - 1 Pole - 2 to 24 Position Adjustable - Non-Shorting - 1.0A@28VDC/0.5A@125VAC - Diallyl phthalat - 15° Index - Solder Terminals ...

Datasheet
RoHS Compliant
Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The C7D0124N-C is a non-shorting rotary selector switch from the C7 Series designed for applications requiring 24 active positions with 15° indexing and continuous rotation capability. It features a 51.6 mm diameter fully enclosed modular design with a single pole and single deck configuration, rated for 1.0 amp at 28 VDC and 0.5 amp at 125 VAC, with a current carrying capacity of 25 amps. The switch incorporates brass terminals with silver plate finish, diallyl phthalate insulation, and a single-ball hill and valley indexing mechanism with a minimum index life of 25,000 cycles and a stop strength of 2.82 Nm minimum. This switch is ideal for industrial control panels, test equipment, and instrumentation applications where reliable, precise position selection and smooth operation are essential.

Search Keywords: C7D0124NC

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Electroswitch
Part No:
C7D0124N-C
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536509020
COO:
US
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Number of Positions:
24
Pole Throw Configuration:
SP24T
Actuator Length:
12.7 mm
Dimension:
51.59 x 51.59 x 38.86 mm
Actuator Style/Diameter:
Flatted Shaft/6.35
Mounting:
Panel Mount
Body Orientation:
Straight
Terminal Type:
Solder
Angle of Throw:
15 °
Contact Rating @ Voltage:
1@28VDC A

IN STOCK: 64

Ships today, if you order in

Factory Lead-Time 6 Weeks

Price (USD)

Qty
Unit Price
1
$58.58
5
$50.24
10
$46.60
25
$42.16
50
$39.44
100
$36.87
250 +
$35.42
