XGJ

Name: XGJ
Brand: Excelsys Advanced Energy
SKU: 58288261
Price: 147.32 USD
Availability: InStock

AC/DC Power Supply Single-OUT 12V 18.3A 220W ...

View Datasheet

Ask the Datasheet

RoHS Compliant

DESCRIPTION

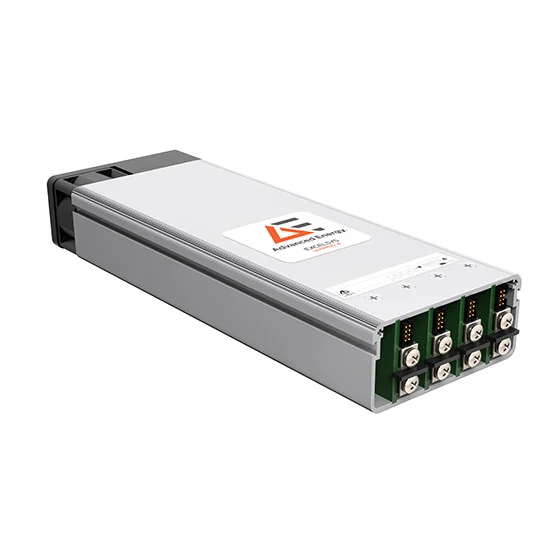

XGJ is a 12V, 220W modular power supply module designed for integration into Advanced Energy's UltiMod series chassis (UX4 or UX6). It features a nominal output voltage of 12.0V with an adjustable set point range of 6.0–15.0V and a dynamic trim range of 4.0–15.0V, delivering a maximum output current of 18.3A. The module includes remote sense capability and power good signal output, enabling precise voltage regulation and system monitoring. With an operating temperature range of -40°C to +70°C, 4 kV input-to-output isolation, and compliance with medical standards (UL/EN60601-1 3rd edition), the XGJ is well-suited for industrial measurement, automation, telecommunications, and medical applications requiring reliable, configurable power delivery.

Product Highlights:

Potential Applications:

Search Keywords: XGJ

SPECIFICATIONS

Product Attribute

Attribute Value

Select Attribute

Products found: 0

Supplier:

Excelsys / Advanced Energy

Part No:

XGJ

Unit of Measure:

Per Each

RoHS:

Yes

HTS:

8504409540

COO:

ECCN:

EAR99

Supplier's Standard Package: The item count, length, weight, or volume contained in the supplier’s original packaging for efficient storage, handling, and distribution.
