XGR
Excelsys / Advanced EnergyPowerMod Reactive Load 12.0V-30.0V, must be used with Xgen/UltiMod powerPac ...
DESCRIPTION

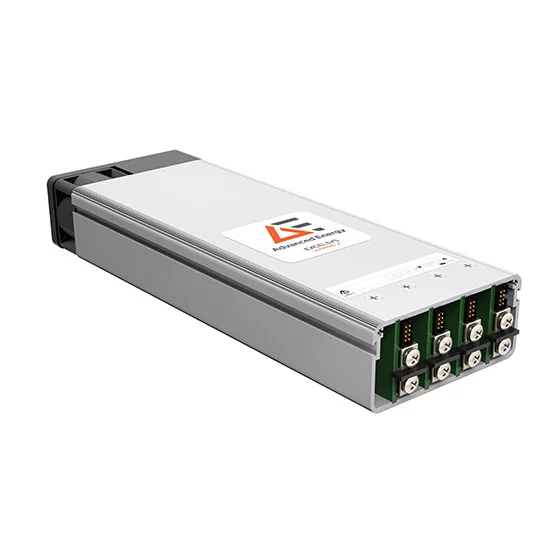

XGR is a 24V/10A modular power supply module designed for the Advanced Energy UltiMod series, delivering 240W of output power with dynamic voltage trimming capability from 8.0V to 30.0V. The module features a nominal output voltage of 24.0V with a manual adjustment range of 12.0V to 30.0V, supporting a maximum capacitive load of 25 mF and incorporating Power Good signal output for system monitoring. XGR operates across a wide temperature range from -40°C to +70°C with excellent transient response characteristics, including 10% maximum voltage deviation and 250 µs settling time for 25% to 75% load changes. The module is suitable for medical and industrial applications requiring modular, field-configurable power solutions with high efficiency up to 91%, low acoustic noise, and compliance with medical safety standards including 4 kV isolation and leakage current specifications.
Search Keywords: XGR
SPECIFICATIONS
IN STOCK: 29
Ships today, if you order in
Factory Lead-Time 8 Weeks
Datasheet
