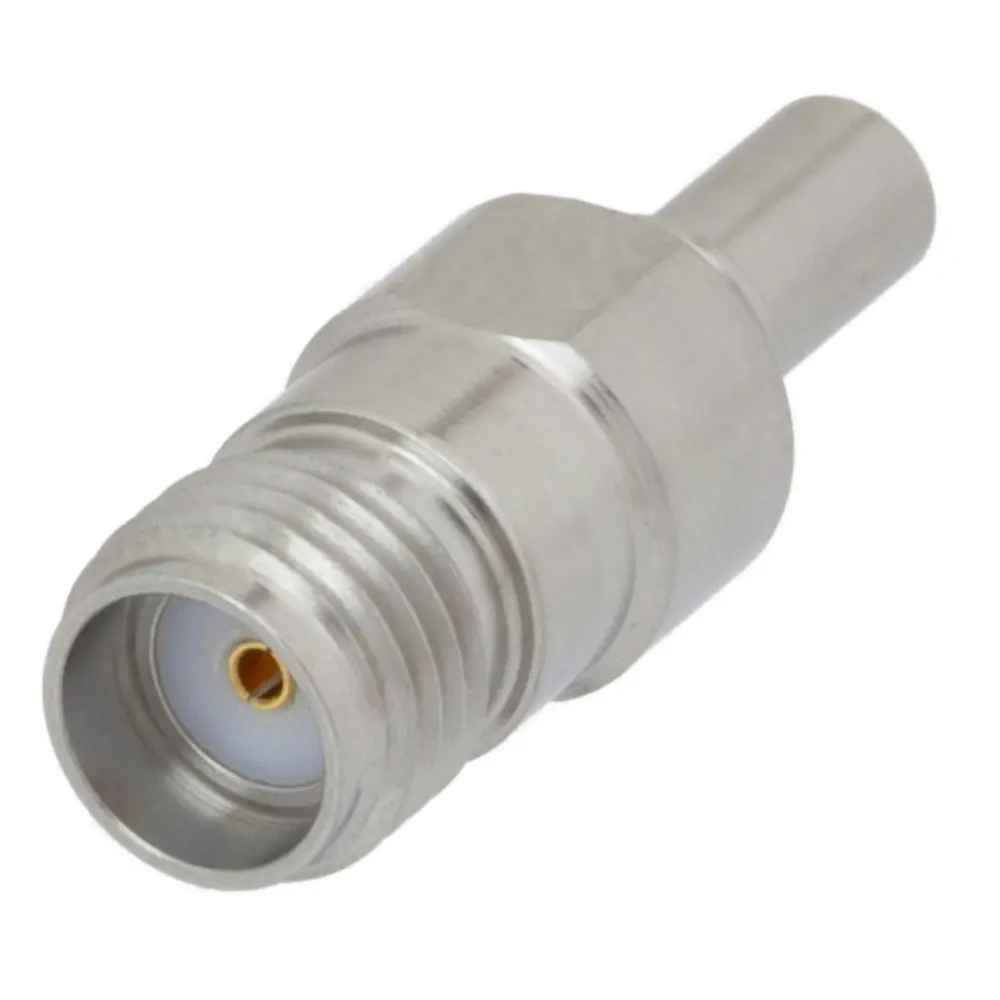

Image is representational - see mfr. specs

FMAD1000

Fairview Microwave

The FMAD1000 is a straight, 50 Ohm SMA female to Mini SMP male full detent adapter that operates from DC to 18 GHz. ...

Datasheet

RoHS Compliant

Bag Packaging

DESCRIPTION

The FMAD1000 is a straight body RF adapter designed to connect SMA female to Mini SMP male full detent interfaces. It operates over a frequency range from DC to 18 GHz while maintaining a low maximum VSWR of 1.35:1. This 50 Ohm adapter is constructed with a passivated stainless steel body and features gold-plated beryllium copper contacts for reliable signal transmission. Ideal for general purpose testing and enabling connections between different connector series, its SMA and Mini SMP interfaces both meet MIL-STD-348A specifications.

Product Highlights:

Potential Applications:

Search Keywords: FMAD1000

SPECIFICATIONS

Product Attribute

Attribute Value

Select Attribute

Products found: 0

Supplier:

Fairview Microwave

Part No:

FMAD1000

Unit of Measure:

Per Each

RoHS:

Yes

HTS:

8536694010

COO:

ECCN:

EAR99

Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
