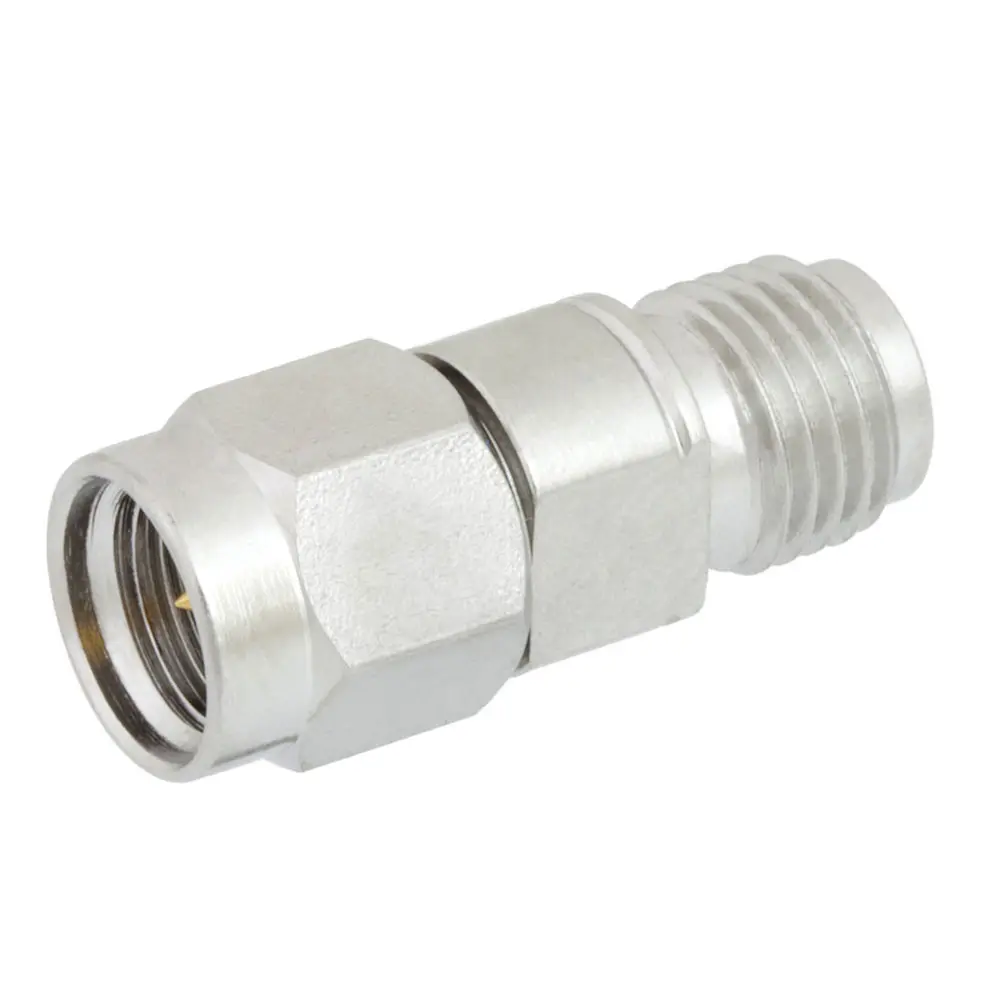

Image is representational - see mfr. specs

FMAD1028

Fairview Microwave

2.92mm Male (Plug) to 2.4mm Female (Jack) Adapter, Passivated Stainless Steel Body, High Temp, 1.25 VSWR ...

Datasheet

RoHS Compliant

Bag Packaging

DESCRIPTION

FMAD1028 is a 2.92mm male to 2.4mm female RF adapter designed to enable connections between incompatible connector types in microwave and millimeter-wave applications. The adapter operates across a frequency range from DC to 40 GHz with a maximum VSWR of 1.25:1 and insertion loss of 0.32 dB, ensuring excellent signal integrity. The device features a passivated stainless steel body with gold over nickel plated beryllium copper contacts, providing durability and corrosion resistance across an operating temperature range of -65°C to +150°C. With 500 mating cycles rated for each connector and a compact form factor (0.784 in length, 5.9 g weight), the FMAD1028 is ideal for test equipment, general-purpose RF interconnections, and connector-saver applications where frequent connect/disconnect cycles occur on expensive equipment.

Product Highlights:

Potential Applications:

Search Keywords: FMAD1028

SPECIFICATIONS

Product Attribute

Attribute Value

Select Attribute

Products found: 0

Supplier:

Fairview Microwave

Part No:

FMAD1028

Unit of Measure:

Per Each

RoHS:

Yes

HTS:

8536694010

COO:

ECCN:

EAR99
