FTR-K1CK024W by fcl components america, inc. (fcai)

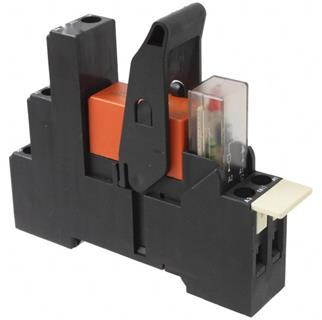

Image is representational - see manufacturer specifications
FCL Components America, Inc. (FCAI) Authorized Distributor

FTR-K1CK024W

Power Relay - 12A - 1 Form C (SPDT) - 24VDC Coil - -40°C to +85°C - Thru Hole ...

View Datasheet Ask the Datasheet
RoHS Compliant
TRAY Packaging
Accessories
Certificate of Compliance

DESCRIPTION

FTR-K1CK024W is a 1-pole 12A power relay from the FTR-K1 series designed for control applications in home appliances, heater control, FA equipment, and I/O modules. The relay features a 24VDC coil with 1,440O resistance (±10%), AgSnO2 contact material, and a low-profile design with 15.7mm height. It offers high insulation with 5,000V dielectric strength between coil and contacts, 10mm minimum insulation distance, and 10,000V surge strength, along with cadmium-free contacts and flux-proof, RT II sealing. The relay operates over a temperature range of -40°C to +85°C with a maximum operating time of 15ms and release time of 5ms, supporting contact ratings of 12A at 250VAC/24VDC (resistive) and maximum switching power of 3,000VA/288W. Its low coil power consumption (400–430mW), mechanical life of 20×106 operations, and compliance with UL, CSA, and VDE safety standards make it suitable for demanding industrial and consumer applications requiring reliable switching performance.

Search Keywords: FTRK1CK024W

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
FCL Components America, Inc. (FCAI)
Part No:
FTR-K1CK024W
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536490075
COO:
CN
ECCN:
EAR99
Supplier's Standard Package: The item count, length, weight, or volume contained in the supplier’s original packaging for efficient storage, handling, and distribution.
50
Package Type:
TRAY
Relay Construction:
Non-Latching
AC Coil Voltage:
N/A
DC Coil Voltage:
24 V
Contact Arrangement:
SPDT
Mounting:
Through Hole
Termination Style:
Solder
Push to Test Button:
No
Led Indicator:
No
Operating Temperature:
-40 to 85 °C
Coil Resistance:
1.44 KOhm

IN STOCK: 490

Can Ship immediately

Minimum Order Quantity: 50

Multiple: 50

Factory Lead-Time 23 Weeks

Price (USD)

Qty
Unit Price
50
$3.78
100
$3.57
250
$3.40
500
$2.91
1,000
$2.88
2,500
$2.87
5,000
$2.86
7,500 +
$2.85
