ATQR2 by ferraz shawmut

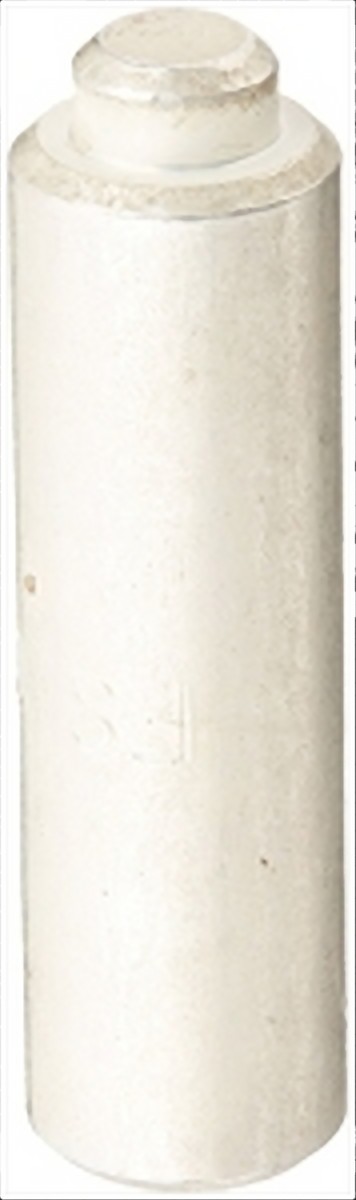

Image is representational - see mfr. specs

ATQR2

Ferraz Shawmut

Fuse Class CC Slow Blow Acting 2A 600V Holder Cartridge 10.4 X 38.1mm Fiber Glass ...

Datasheet
RoHS Non-Compliant
Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

ATQR2 is a time-delay Class CC fuse designed to protect control transformers, solenoids, and inductive loads from fault currents while accommodating high inrush currents without nuisance opening. The fuse is rated at 2A with a voltage rating of 600VAC (or 300VDC for higher amperage variants) and features a 200kA interrupting rating (AC) and 100kA (DC), providing highly current-limiting protection with low peak let-thru current. The fuse body is constructed from fiberglass for dimensional stability in harsh industrial environments, filled with high-grade silica for fast arc quenching and superior current limitation. Its rejection-style design prevents replacement errors when used with recommended fuse blocks, while the metal-embossed date and catalog number ensure traceability. ATQR2 is ideal for branch circuit protection in electrical distribution systems serving lighting, heating, and general-purpose loads, and is UL listed to standard 248-4 and CSA certified.

Search Keywords: ATQR2

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Ferraz Shawmut
Part No:
ATQR2
Unit of Measure:
Per Each
RoHS:
No
HTS:
8536100040
COO:
MX
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
10
Type:
Class CC
Fuse Size:
10.4 x 38.1 mm
Acting:
Slow Blow
Current Rating:
2 A
Maximum AC Voltage Rating:
600 V
Maximum DC Voltage Rating:
300 V
Fuse Material:
Fiber Glass
Mounting:
Holder

IN STOCK: 27

Can Ship immediately

Minimum Order Quantity: 10

Multiple: 10

Factory Lead-Time 12 Weeks

Price (USD)

Qty
Unit Price
10
$31.04
30
$29.24
50
$27.90
100
$25.71
250
$25.45
500
$25.20
1,000 +
$24.95
Suppliers Standard Package
Log in for special pricing Click for Quote Price Match Request

Tools/3D Models

Product Guides
