04A-B01 by grayhill
Image is representational - see mfr. specs

04A-B01

Grayhill

Switch Push Button 4PST Bat Handle 0.25A 220VAC PC Pins Thru-Hole ...

Datasheet
RoHS Compliant
Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

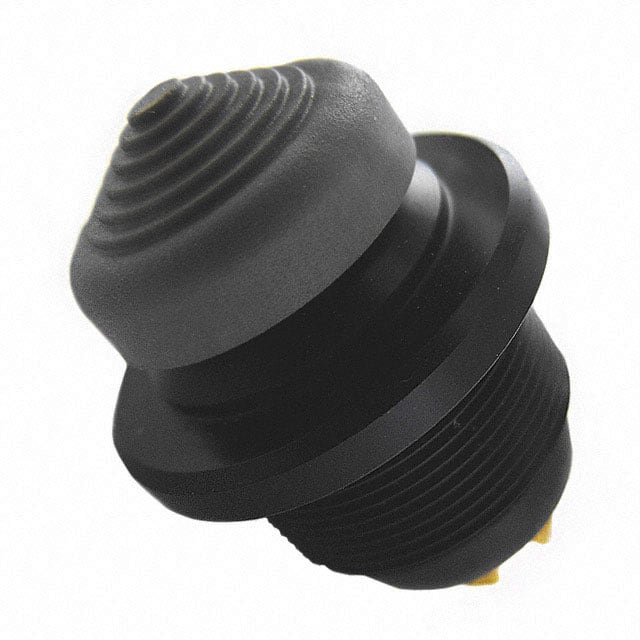

The 04A-B01 is a butt contact pushbutton switch with a permanently attached bat-handle actuator, designed for joystick-style position control and cursor movement on display screens. This 4PST (four-pole, single-throw) switch features a rated capacity of 250 mA at 115 Vac or 125 mA at 220 Vac resistive load with a contact life of 500,000 operations. The switch incorporates gold-plated brass terminals, phosphor bronze shorting bar, and tinned music wire springs, with an operating temperature range of -40°C to +85°C and a contact resistance of 25 milliohms maximum. The bat-handle measures 0.375 ± 0.005 inches in diameter and 1.219 ± 0.020 inches in length, providing ergonomic control for menu navigation and cursor positioning applications. This switch is ideal for legacy CRT screen interfaces, industrial control panels, and any application requiring reliable joystick-style actuation.

Search Keywords: 04AB01

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Grayhill
Part No:
04A-B01
Alias/AKA:
ASM,4WAY,BAT-HANDLE,ROHS
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536509030
COO:
US
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Mounting:
Through Hole
Pole Throw Configuration:
4PST
Bushing Type:
N/R
Switch Configuration:
N.O./N.C.
Contact Rating @ Voltage:
0.25A@115 VAC
Actuator Style:
Bat Handle
Illumination:
N/R
Terminal Type:
PC Pins
Body Orientation:
Straight
Dimension:
21.59 x 21.59 x 30.96 mm

IN STOCK: 60

Can Ship immediately

Factory Lead-Time 12 Weeks

Price (USD)

Qty
Unit Price
1
$32.69
5
$23.95
10
$22.29
25
$20.11
50
$18.92
100
$18.22
250 +
$18.13
Log in for special pricing Click for Quote Price Match Request

Tools/3D Models

Product Guides
