50CD36-01-1-AJN by grayhill

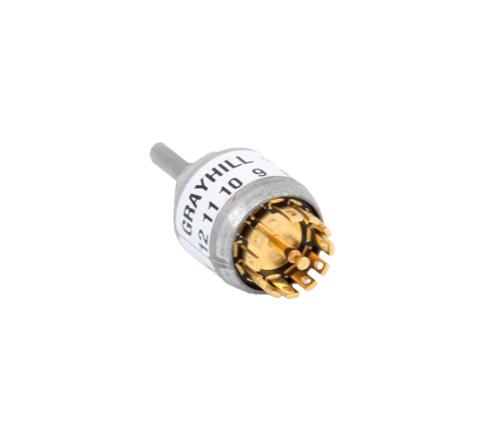

Image is representational - see manufacturer specifications
Grayhill Authorized Distributor

50CD36-01-1-AJN

Switch Rotary SP Flatted Shaft Solder Lug 0.2A 220VAC 28VDC ...

View Datasheet Ask the Datasheet
RoHS Compliant
Packaging
Accessories
Certificate of Compliance

DESCRIPTION

The 50CD36-01-1-AJN is a single-deck rotary switch manufactured by Grayhill, designed for applications requiring reliable contact switching with a compact form factor. This switch features a 0.5" diameter with a 36° angle of throw, 1 pole configuration, and solder lug termination, rated for 200mA continuous current. The switch offers non-shorting contacts and is available with optional complete seal for PC board assembly and cleaning, providing EMI/RFI shielding through positive shaft grounding. With a 0.698" behind-panel depth and standard 1/8" shaft, this rotary switch is ideal for industrial control panels, instrumentation, and applications requiring precise position selection with minimal space constraints.

Search Keywords: 50CD36011AJN

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Grayhill
Part No:
50CD36-01-1-AJN
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536509020
COO:
US
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Number of Positions:
N/A
Pole Throw Configuration:
SP10T
Actuator Length:
9.53 mm
Dimension:
12.7 x 12.7 x 35.46 mm
Actuator Style/Diameter:
Flatted Shaft/3.18
Mounting:
Panel Mount
Body Orientation:
Straight
Terminal Type:
Solder
Angle of Throw:
36 °
Contact Rating @ Voltage:
0.2@28VDC A

IN STOCK: 70

Can Ship immediately

MOQ for In Stock Qty: 2

MOQ for out of Stock Qty: 2

Factory Lead-Time 16 Weeks

Price (USD)

Qty
Unit Price
2
$52.69
5
$52.57
7
$52.44
13
$42.35
19
$40.57
25 +
$39.76
