56SD36-01-2-AJN by grayhill

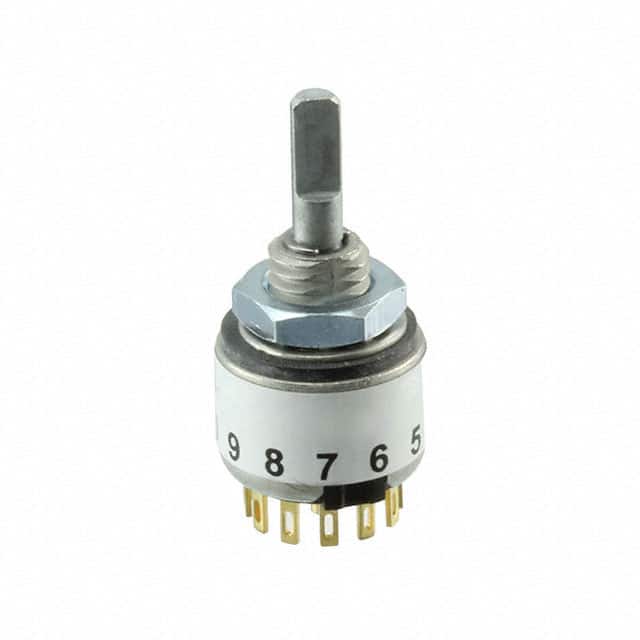

Image is representational - see manufacturer specifications
Grayhill Authorized Distributor

56SD36-01-2-AJN

Switch Rotary DP Flatted Shaft Solder Lug 0.2A 115VAC 30VDC ...

View Datasheet Ask the Datasheet
RoHS Compliant
Packaging
Accessories
Certificate of Compliance

DESCRIPTION

The GRAYHILL part 56SD36-01-2-AJN is a durable and reliable rotary switch designed for various applications. It features a flatted shaft design and solder lug terminals for easy installation. With a current rating of 0.2A and voltage rating of 115VAC and 30VDC, this switch can handle a wide range of electrical loads. Whether you are looking for a switch for industrial machinery or consumer electronics, the 56SD36-01-2-AJN is an excellent choice. Trust in its high performance and long-lasting functionality for your switching needs.

Search Keywords: 56SD36012AJN

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Grayhill
Part No:
56SD36-01-2-AJN
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536509020
COO:
US
ECCN:
EAR99
Supplier's Standard Package: The item count, length, weight, or volume contained in the supplier’s original packaging for efficient storage, handling, and distribution.
1
Number of Positions:
N/A
Pole Throw Configuration:
DP5T
Actuator Length:
9.53 mm
Dimension:
12.7 x 12.7 x 28.07 mm
Actuator Style/Diameter:
Flatted Shaft/3.18
Mounting:
Panel Mount
Body Orientation:
Straight
Terminal Type:
Solder
Angle of Throw:
36 °
Contact Rating @ Voltage:
0.2 A

IN STOCK: 234

Ships today, if you order in

Factory Lead-Time 16 Weeks

Price (USD)

Qty
Unit Price
1
$33.37
5
$27.57
10
$25.99
25
$23.94
50
$23.77
100
$20.36
250 +
$18.67
Log in for special pricing
