71BDF30-01-2-AJN by grayhill

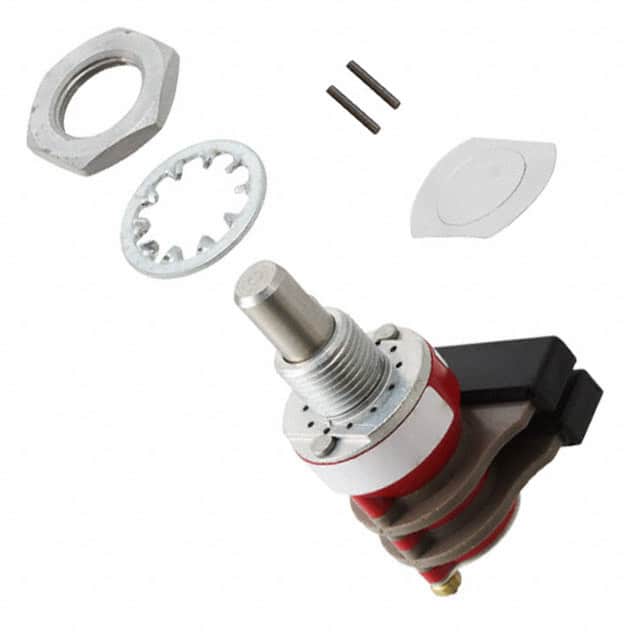

71BDF30-01-2-AJN

Grayhill

Switch Rotary DP6T 6 Flatted Shaft PC Pins 0.3A 115VAC 30VDC Automotive ...

Datasheet
RoHS Compliant
Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The GRAYHILL part 71BDF30-01-2-AJN is a high-quality rotary switch designed for automotive applications. It features a double pole six throw (DP6T) configuration and has six flatted shafts for easy and secure installation. The switch has PC pins for reliable electrical connections and is capable of handling currents up to 0.3A at 115VAC or 30VDC. With its robust construction and automotive-grade reliability, this switch is an ideal choice for a wide range of automotive applications.

Search Keywords: 71BDF30012AJN

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Grayhill
Part No:
71BDF30-01-2-AJN
RoHS:
Yes
HTS:
8536509020
COO:
US
ECCN:
EAR99
Supplier Standard Pack:  This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Number of Positions:
6
Pole Throw Configuration:
DP6T
Actuator Length:
9.53 mm
Dimension:
22.23mm x 36.78mm x 18.08 mm
Actuator Style/Diameter:
Flatted Shaft/6.36
Mounting:
Panel Mount/Through Hole
Body Orientation:
Right Angle
Terminal Type:
PC Pins
Angle of Throw:
30 °
Contact Rating @ Voltage:
0.3@115VAC A

IN STOCK: 258

Can Ship immediately

Factory Lead-Time 9 Weeks

Price (CAD)

Qty
Unit Price
1
$58.499
5
$38.425
25
$33.513
50
$31.358
100
$29.342
250
$26.833
500 +
$26.356
Log in for special pricing
Click for Quote
