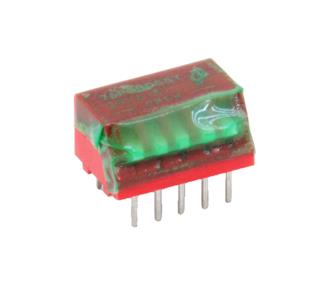

76PSB02ST

Grayhill

Switch DIP ON OFF SPST 2 Piano 0.15A 30VDC PC Pins 2000Cycles/SwitchCycles 2.54mm Thru-Hole Tube ...

Datasheet
RoHS Compliant
TUBE Packaging
Accessories
This product is backed by Electro Sonic' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The 76PSB02ST is a 2-position piano-DIP thru-hole DIP switch manufactured by Grayhill as part of their Series 76 product line. It features a sealed base with spring and ball contact mechanism, and is configured with up-is-open (off) actuation logic. The switch has a length of 0.280 inches (7.1 mm) and operates over a temperature range of -40°C to +85°C, with a mechanical life rating of 2,000 operations per switch position. It supports make-and-break current ratings of 1 mA at 5 Vdc, 50 mA at 30 Vdc, or 150 mA at 30 Vdc, with initial contact resistance of =30 mO and a maximum current carry rating of 5 A. This switch is ideal for applications requiring compact, sealed switching in industrial control systems, consumer electronics, and equipment requiring machine soldering or heavy cleaning compatibility.

Search Keywords: 76PSB02ST

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Grayhill
Part No:
76PSB02ST
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536509065
COO:
CN
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
35
Package Type:
TUBE
Body Orientation:
Straight
Actuator Style:
Piano
Actuator Length:
N/A
Number of Positions:
2
Pole Throw Configuration:
SPST
Mounting:
Through Hole
Terminal Type:
PC Pins
Contact Rating @ Voltage:
0.15@30VDC A
Contact Plating:
Gold/Nickel Barrier
Terminal Pitch:
2.54 mm

IN STOCK: 312

Can Ship immediately

Minimum Order Quantity: 35

Multiple: 35

Factory Lead-Time 9 Weeks

Price (USD)

Qty
Unit Price
35
$3.64
70
$3.63
280
$3.57
525
$3.55
1,015
$3.54
2,520
$3.53
5,005
$3.52
7,525 +
$3.51
Suppliers Standard Package
