186C24 by hammond canada

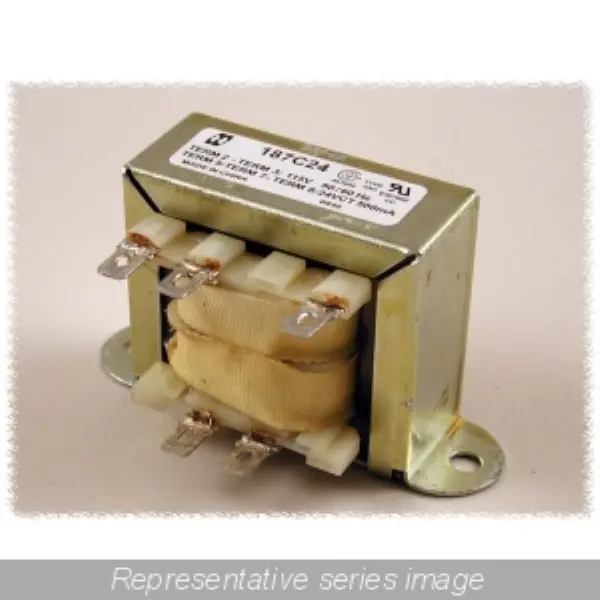

Image is representational - see manufacturer specifications
Hammond Canada Authorized Distributor

186C24

transformer - low voltage, chassis mount

View Datasheet Ask the Datasheet
RoHS Compliant
Box Packaging
Accessories
Certificate of Compliance

DESCRIPTION

transformer - low voltage, chassis mount

Search Keywords: 186C24

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Hammond Canada
Part No:
186C24
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8504314065
COO:
CN
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Package Type:
Box
Transformer Type:
Low Voltage Power Transformer
Dimension:
71.37mm x 43.815mm x 41.15mm
Primary Configuration:
Dual
Secondary Side Connection:
N/A
Lead Style:
Solder Lug/Quick Connect
Package Type:
N/A
Product Weight:
N/A
Core Type:
Bobbin
Primary Side Voltage:
115,230 V
Primary Side Connection:
N/A
Packaging:
N/A
Family:
186
Secondary Configuration:
Single
Secondary Side Current:
500 mA
Power Rating:
12 VA
Primary Frequency:
50/60 Hz
High Potential:
2000 Vrms
Pin Count:
7
Secondary Side Voltage:
24 V
Mounting:
Flange Mount
Turns Ratio:
N/A
Operating Temperature:
N/A

IN STOCK: 35

Can Ship immediately

Manufacturer Stock: 17   can ship 8/20/26

Minimum Order Quantity: 5

Factory Lead-Time 2 Weeks can ship 8/26/26

Price (USD)

Qty
Unit Price
5
$11.1079
25
$10.1342
50
$9.7072
100
$9.3178
250
$8.9657
500
$8.7410
1,000 +
$8.6361
Log in for special pricing Click for Quote Price Match Request

Tools/3D Models

Product Guides
