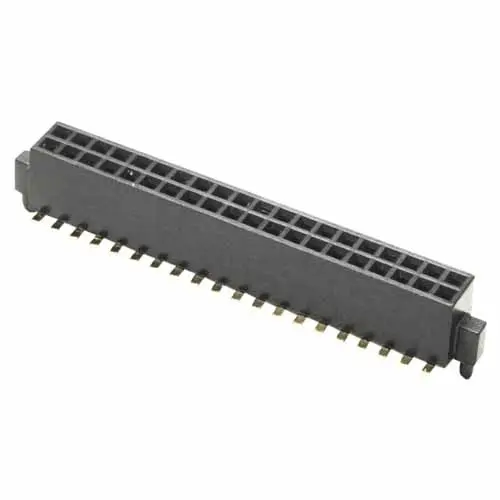

Image is representational - see manufacturer specifications
Harwin Authorized Distributor

M50-3600542

The M50-3600542 is a 1.27mm pitch M50 series pin header connector designed for board-to-board connections. ...

View Datasheet Ask the Datasheet
RoHS Compliant
Packaging
Accessories
Certificate of Compliance

DESCRIPTION

The M50-3600542 is a pin header from the M50 series of 1.27mm pitch connectors, intended for board-to-board applications. It is rated for a current of 1A maximum per contact and operates over a temperature range of -40°C to +105°C. The component is engineered for durability, withstanding vibration up to 3.13Grms, shock of 30G for 11ms, and a mechanical life of 300 operations. Key electrical characteristics include a dielectric withstanding voltage of 1,000V ACrms/DC and a minimum insulation resistance of 1,000MΩ. These features make it a robust and reliable choice for various electronic assemblies.

Search Keywords: M503600542

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Harwin
Part No:
M50-3600542
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536694040
COO:
CN
ECCN:
EAR99
Supplier's Standard Package: The item count, length, weight, or volume contained in the supplier’s original packaging for efficient storage, handling, and distribution.
1000

IN STOCK: 1,108

Can Ship immediately

Minimum Order Quantity: 25

Factory Lead-Time 15 Weeks

Price (USD)

Qty
Unit Price
25
$1.198
250
$1.035
500
$0.922
1,000
$0.854
3,000
$0.845
5,000
$0.774
8,000
$0.771
10,000 +
$0.739
Supplier's Standard Package
Log in for special pricing

Tools/3D Models

Product Guides

Accessories

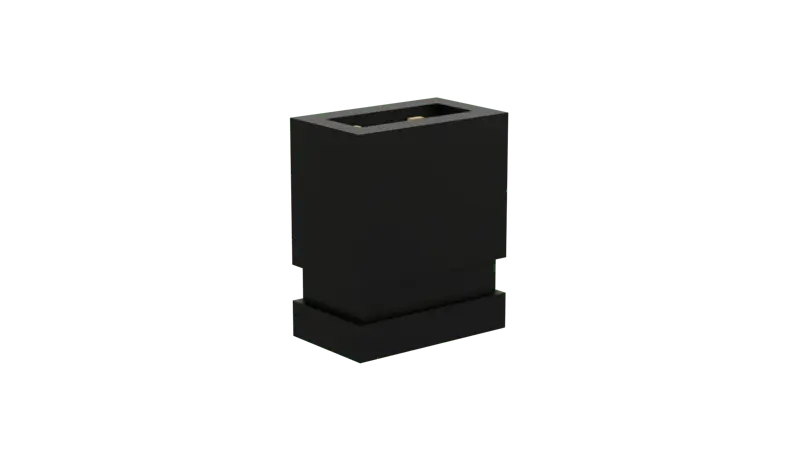

M50-1900005

The M50-1900005 is a 1.27mm pitch, closed-top jumper socket with a gold finish, used for o ...

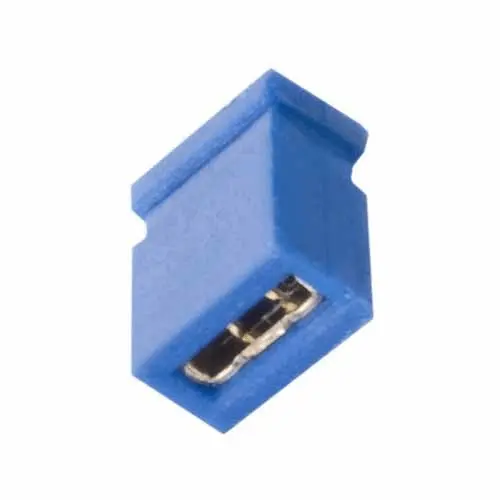

M50-1930005

1.27mm (0.05) Pitch Closed Top Jumper Socket, blue, gold"

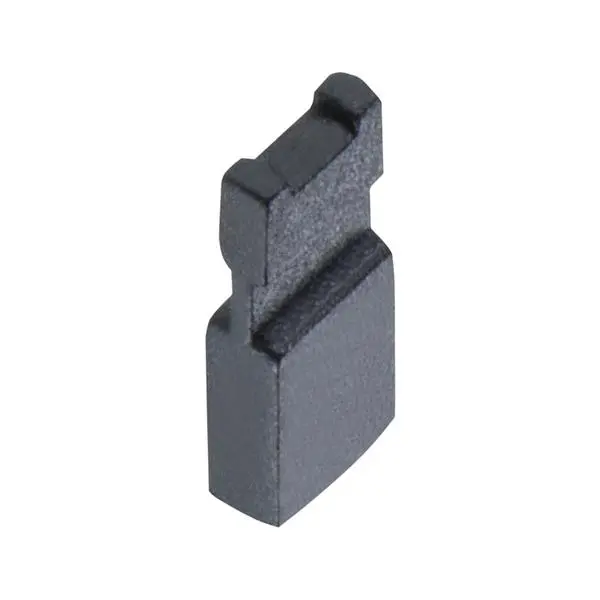

M50-2000005

The M50-2000005 is a 1.27mm pitch, closed-top jumper socket with a handle and gold-plated ...

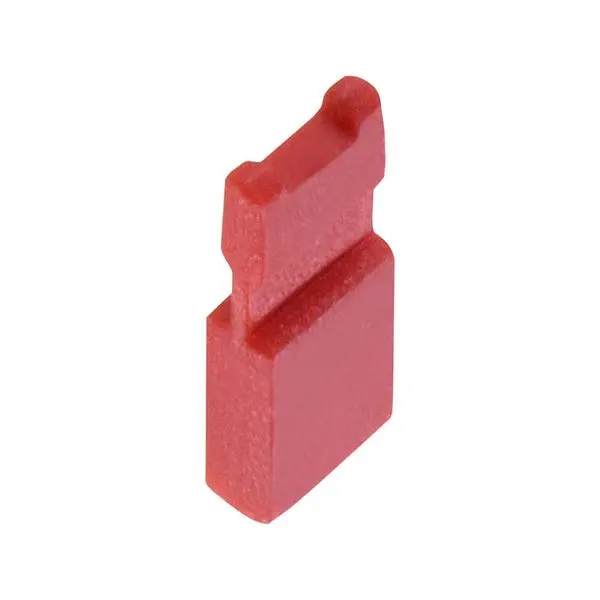

M50-2020005

The M50-2020005 is a 1.27mm pitch, red jumper socket with a handle and gold contacts, desi ...

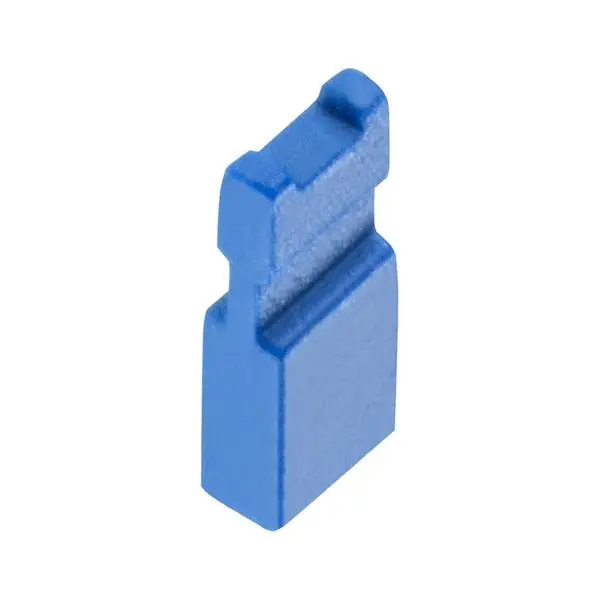

M50-2030005

The M50-2030005 is a blue, closed-top jumper socket with a handle, featuring gold-plated c ...

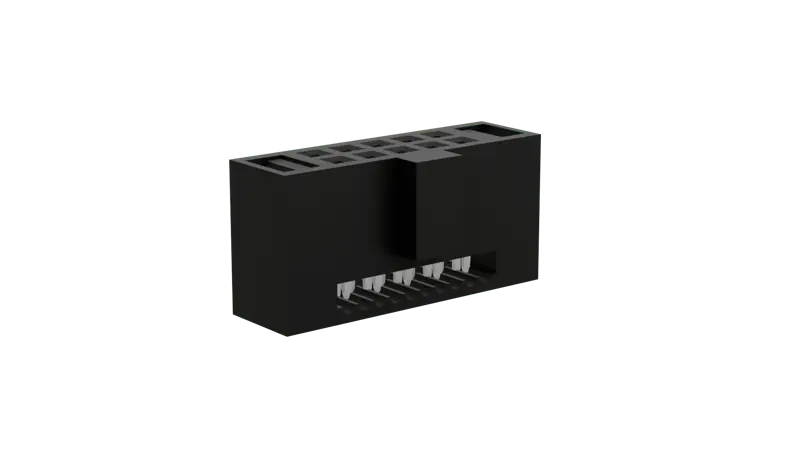

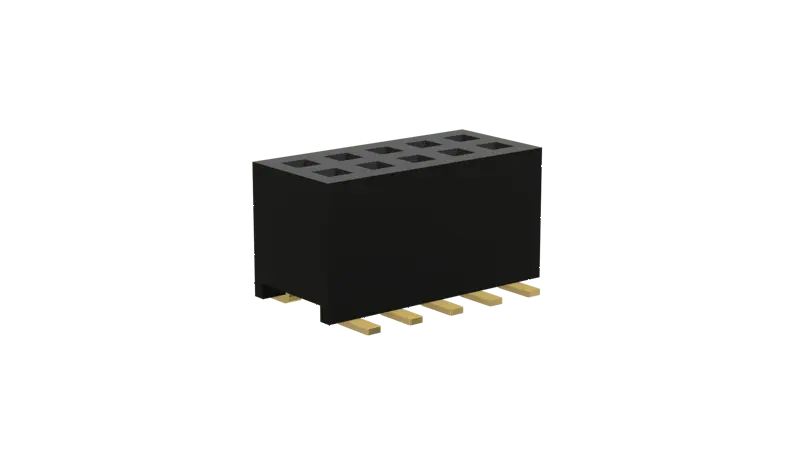

M50-3100545

5+5 Pos. Female DIL Vertical SMT Conn.

M50-3120545

Conn Socket Strip Receptacle 10 POS 1.27mm Solder ST Surface Mount

M50-3300542

The M50-3300542 is a 1.27mm pitch connector designed for board-to-board applications.

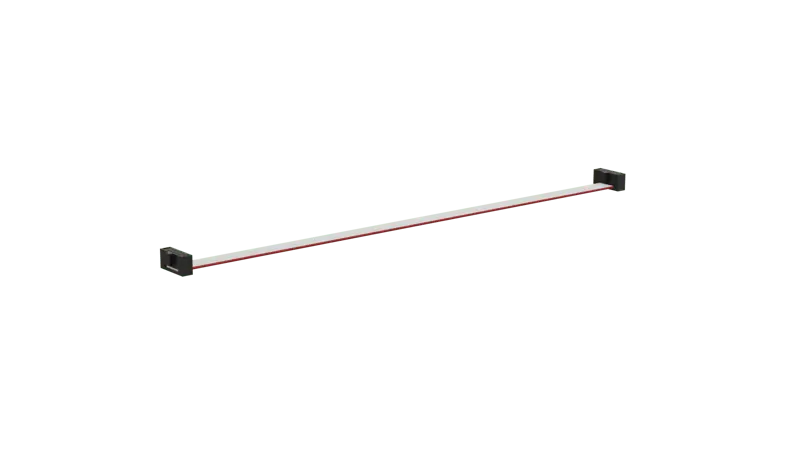

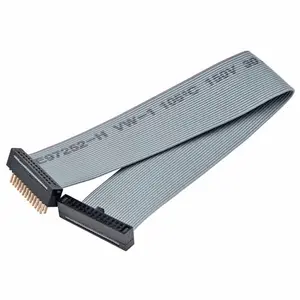

M50-9010542

Cable Assembly 0.15m 1.27mm 10 to 10 POS IDC Connector to IDC Connector PL-SKT Bulk/Loose

M50-9020542

Cable Assy, Idc Plug-rcpt, 10WAY, 300MM Rohs Compliant: Yes

M50-9100542

The M50-9100542 is a 1.27mm pitch connector from the M50 series designed for board-to-boar ...

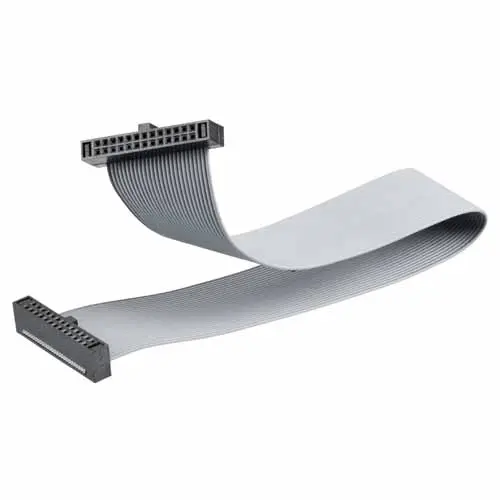

M50-9110542

Ribbon Cables / IDC Cables 5+5 DIL IDC FM to FM 300MM, CBLE ASSY

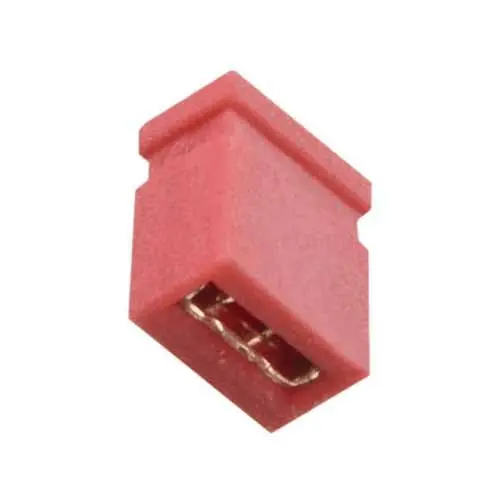

M50-1920005

1.27mm (0.05) Pitch Closed Top Jumper Socket, red, gold"

M50-3000545

Conn Socket Strip SKT 10 POS 1.27mm Solder ST Thru-Hole Tube

M50-3110542

5+5 Pos. Female Dil Vertical Smt Conn. Rohs Compliant: Yes |Harwin M50-3110542

M50-3150542

5+5 Pos. Female DIL Vertical SMT Conn.

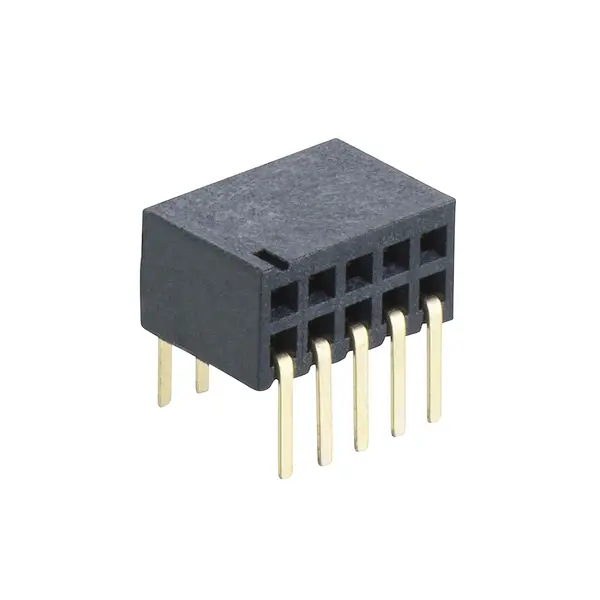

M50-3200545
