M80-1950005 by harwin

Image is representational - see manufacturer specifications

Harwin Authorized Distributor

M80-1950005

The M80-1950005 is a gold-plated brass male crimp contact designed for 24-28 AWG wire in Jackscrew Datamate connector systems. ...

RoHS Compliant

DESCRIPTION

The M80-1950005 is a small bore male crimp contact for use in Jackscrew Datamate mouldings. Constructed from brass, it features a finish of 0.25-0.30µm gold over a 1.0-2.0µm nickel underplate for reliable electrical performance. This contact is designed to accommodate wire gauges from 24 to 28 AWG with a maximum insulation diameter of 1.10mm. It is rated for a mechanical durability of 500 operations and an operating temperature range of -55°C to +125°C, ensuring robust performance in demanding applications.

Product Highlights:

Potential Applications:

Search Keywords: M801950005

SPECIFICATIONS

Product Attribute

Attribute Value

Select Attribute

Products found: 0

Supplier:

Harwin

Part No:

M80-1950005

Unit of Measure:

Per Each

RoHS:

Yes

HTS:

8536904000

COO:

GB

ECCN:

EAR99

Supplier's Standard Package: The item count, length, weight, or volume contained in the supplier’s original packaging for efficient storage, handling, and distribution.

The item count, length, weight, or volume contained in the supplier’s original packaging for efficient storage, handling, and distribution.

1000

IN STOCK: 974

Ships today, if you order in

BONDED Quantity: 0

Manufacturer Stock: 0

Stock lot only:

Minimum Order Quantity: 25

MOQ for out of Stock Qty:

Multiple: 1

Factory Lead-Time 9 Weeks

This product is no longer being manufactured but there may be alternatives. We can help you, Contact Us.

Price (USD)

Qty

Unit Price

25

$1.86

100

$1.57

250

$1.48

500

$1.37

1,000

$1.33

3,000

$1.29

5,000

$1.28

8,000 +

$1.27

Supplier's Standard Package

Log in for special pricing

Tools/3D Models

Product Guides

Learn more about Harwin High Reliability Interconnect Solutions for Critical Applications

Accessories

M80-0130001

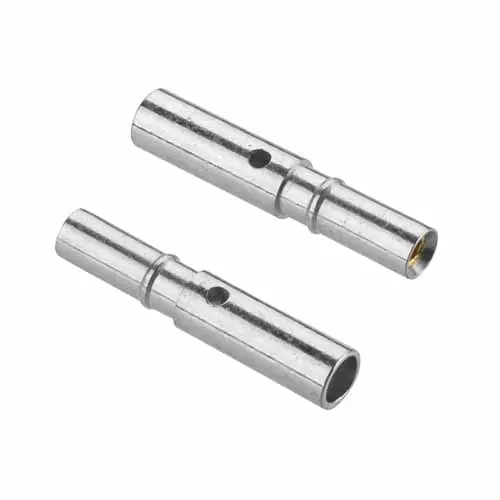

Contact, Socket, 28-24Awg, Crimp Rohs Compliant: Yes |Harwin M80-0130001
